<< A >> Balancer Shaft And Oil Pump Module Removal

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Never turn the crankshaft counterclockwise.
  • Never turn the crankshaft after the cylinder No.1 or No.4 is set to the top dead center of compression.
  1. Turn the crankshaft clockwise to align the timing mark of the balancer shaft sprocket with the timing mark of the balancer shaft and oil pump module, and set the cylinder No.1 or No.4 to the top dead center of compression.
  2. Put paint marks on the balancer shaft sprocket timing mark and balancer timing chain.

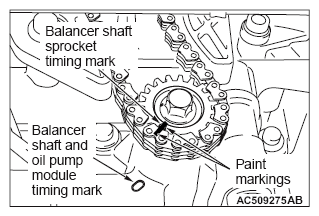

    Fig 1: Identifying Balancer Shaft And Oil Pump Module Timing Mark
    G09663406
    CAUTION: Securely install the plunger of the timing chain tensioner. Otherwise, it may pop out.
  3. Press the balancer timing chain against the timing chain tensioner, compress the plunger of the timing chain tensioner and insert L-shaped hard wire (piano wire, etc.) or L-shaped hexagon wrench (1.5 mm [0.05 inch]) to the plunger fixing hole of the timing chain tensioner from under the timing chain case, and fix the plunger of the timing chain tensioner.
    Fig 2: Fixing Plunger Of Timing Chain Tensioner
    G09663407

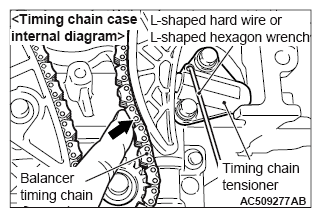

    Fig 3: Locating Balancer Timing Chain
    G09663408
  4. Use a wrench to remove the mounting bolt at the lower side of the balancer timing chain guide shown in the figure so that the balancer timing chain guide is unrestricted.
  5. Support the balancer shaft and oil pump module with a hand, and remove the balancer shaft and oil pump module mounting bolt.

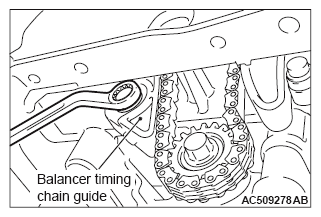

    Fig 4: Removing Balancer Shaft And Oil Pump Module Mounting Bolt Using Tool
    G09663409
  6. Remove the balancer shaft and oil pump module from the rudder frame with the balancer timing chain attached, and move it to the center of the engine.
  7. Remove the balancer timing chain from the balancer shaft and oil pump module, and remove the balancer shaft and oil pump module.
    CAUTION: When the tooth jump of the balancer timing chain from the crankshaft sprocket occurs, the timing between the balancer shaft and the oil pump module becomes off, resulting in the abnormal engine vibration. Be sure that the tooth jump will not occur.

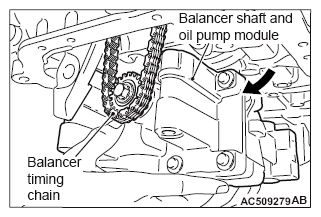

    Fig 5: Removing Balancer Shaft And Oil Pump Module From Rudder Frame
    G09663410
  8. After the balancer shaft and oil pump module is removed, using a cable band, tie the balancer timing chain at the protrusion of the rudder frame to prevent the tooth jump of balancer timing chain from the crankshaft sprocket.

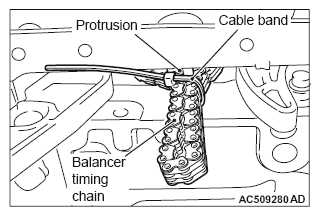

    Fig 6: Tying Balancer Timing Chain At Protrusion Of Rudder Frame Using Cable Band
    G09663411
