Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

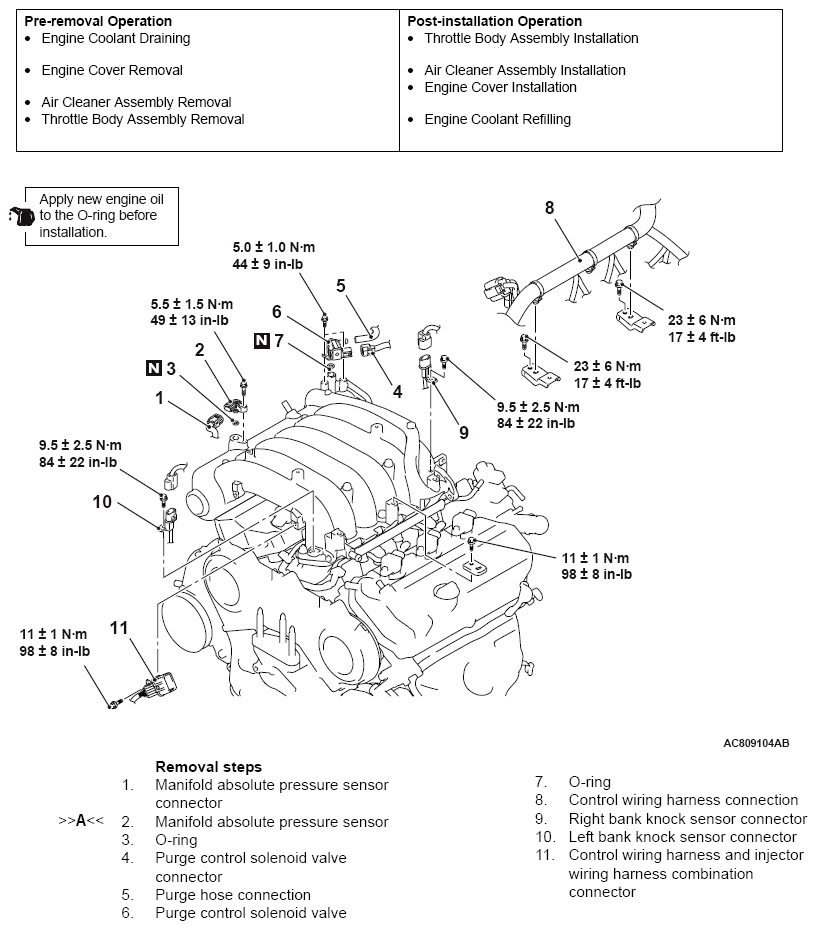

Fig 1: Removing/Installing Intake Manifold Plenum With Torque Specification - 3.0L Engine (1 Of 2)
G09664656Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

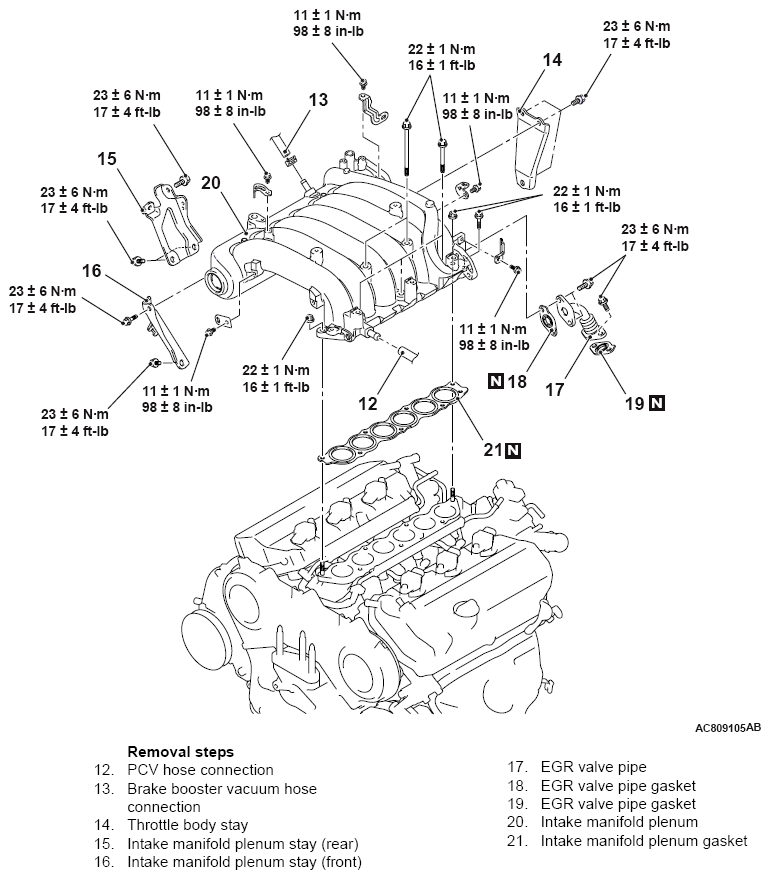

Fig 2: Removing/Installing Intake Manifold Plenum With Torque Specification - 3.0L Engine (2 Of 2)
G09664657Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
