Removal And Installation - 2.4L Engine: Notes
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not reuse the heated oxygen sensor that has been dropped.
FWD

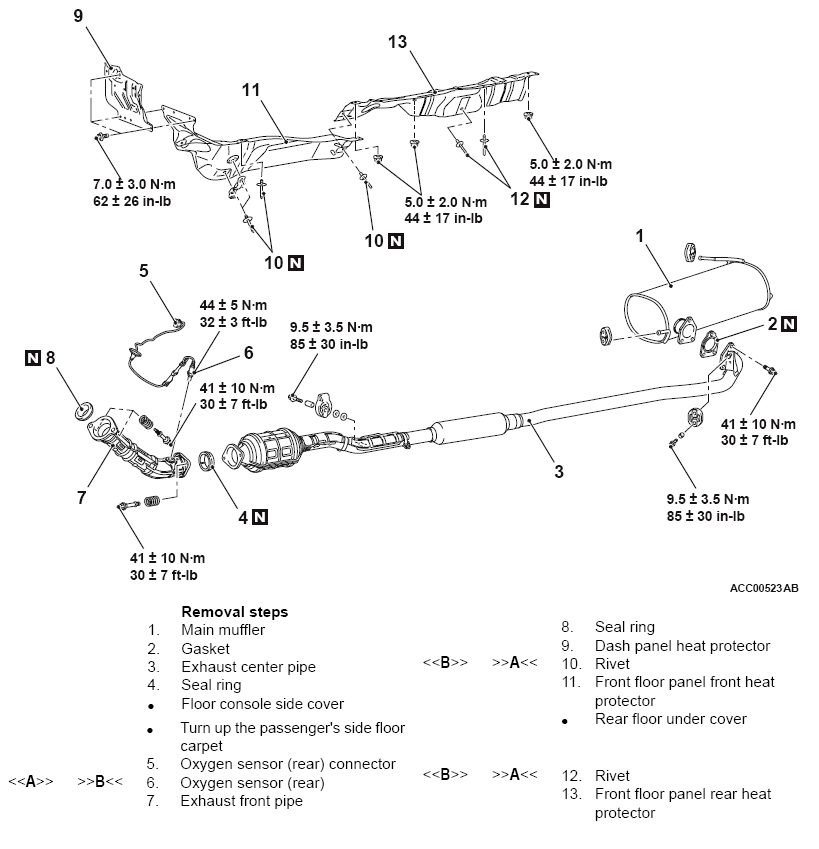

Fig 1: Removing/Installing Exhaust Pipe And Main Muffler With Torque Specification - 2.4L Engine (FWD)
AWD

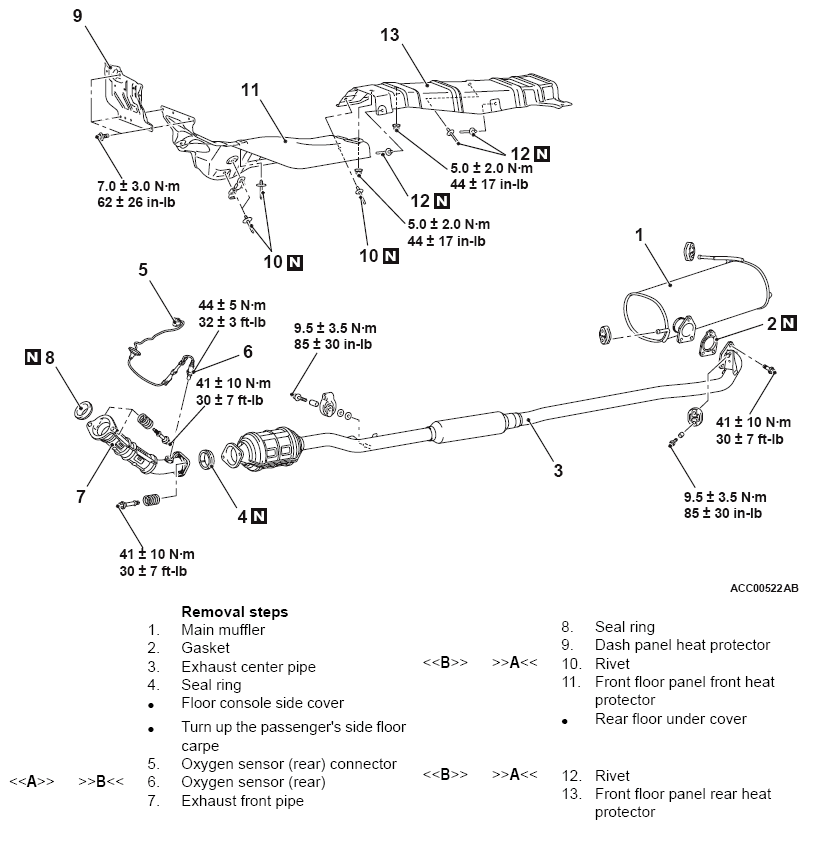

Fig 2: Removing/Installing Exhaust Pipe And Main Muffler With Torque Specification - 2.4L Engine (AWD)
Required Special Tools:
- MB991953: Heated Oxygen Sensor Wrench
