Removal And Installation - 3.0L Engine: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

LEFT BANK

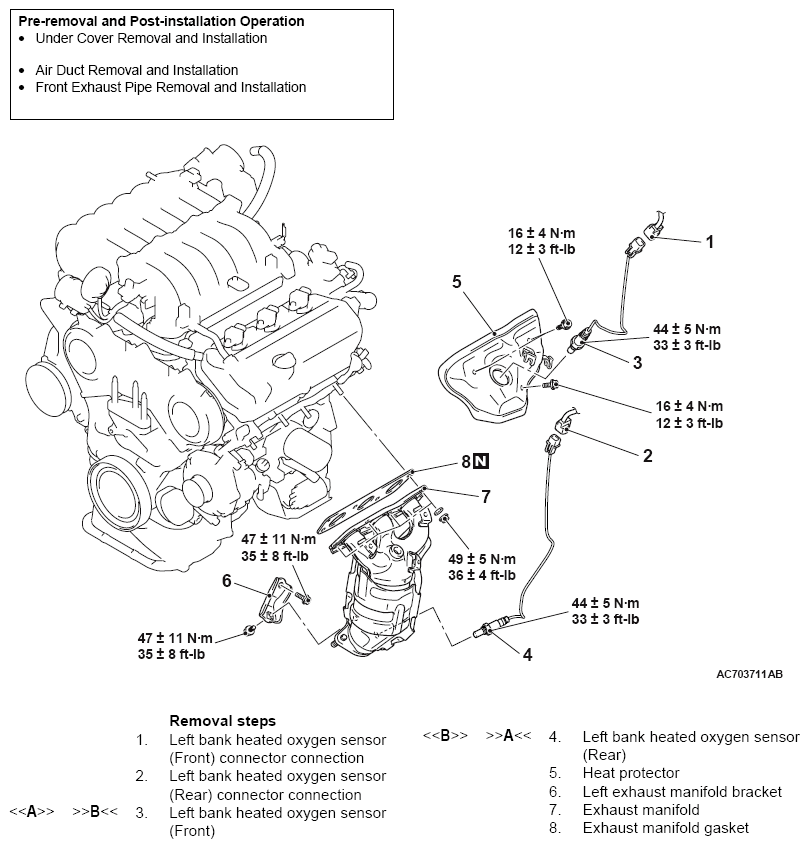

Fig 1: Removing/Installing Exhaust Manifold With Torque Specification - 3.0L Engine (Left Bank)
G09664674Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

RIGHT BANK

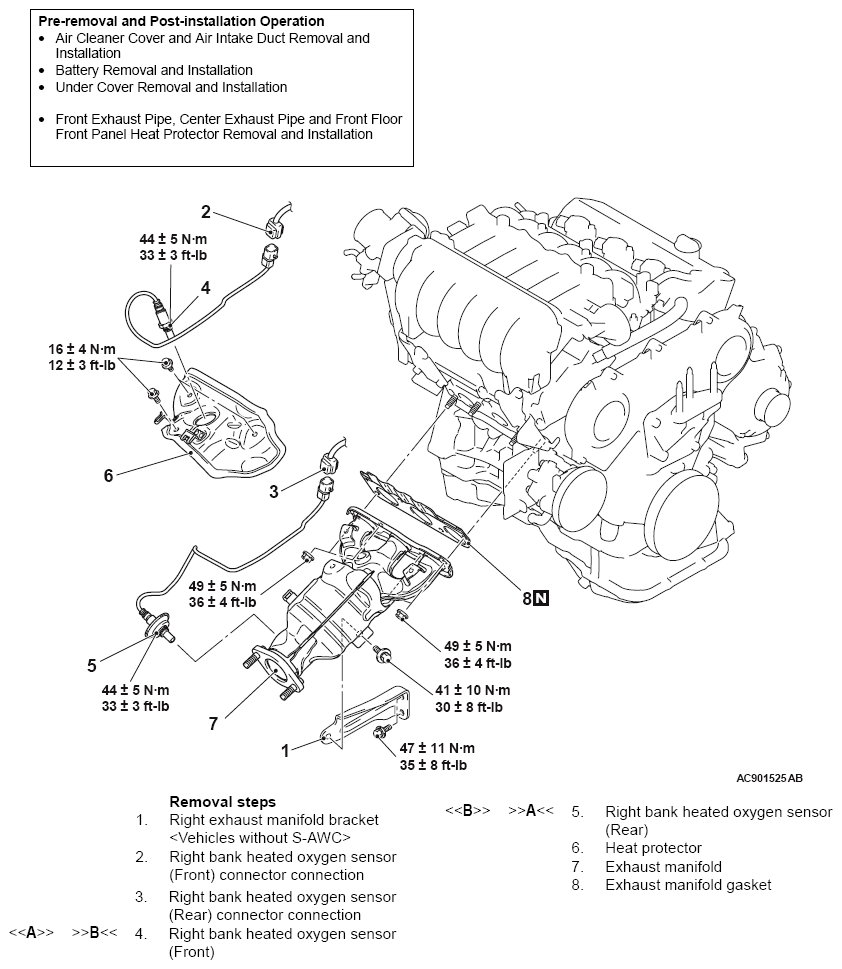

Fig 2: Removing/Installing Exhaust Manifold With Torque Specification - 3.0L Engine (Right Bank)
G09664675Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
