Removal And Installation - 2.4L Engine: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not reuse the heated oxygen sensor that has been dropped.

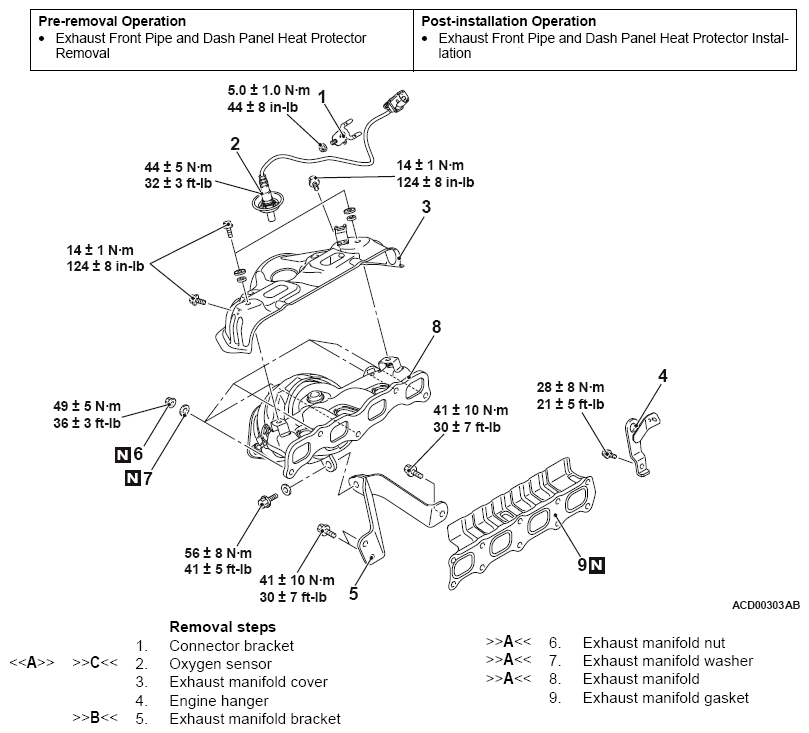

Fig 1: Removing/Installing Exhaust Manifold With Torque Specification - 2.4L Engine
G09664670Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
