Removal And Installation - 2.4L Engine: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When removing or installing the volume air flow sensor, be careful not to apply impact to the sensor.
  • Do not reuse the volume air flow sensor that has been dropped.

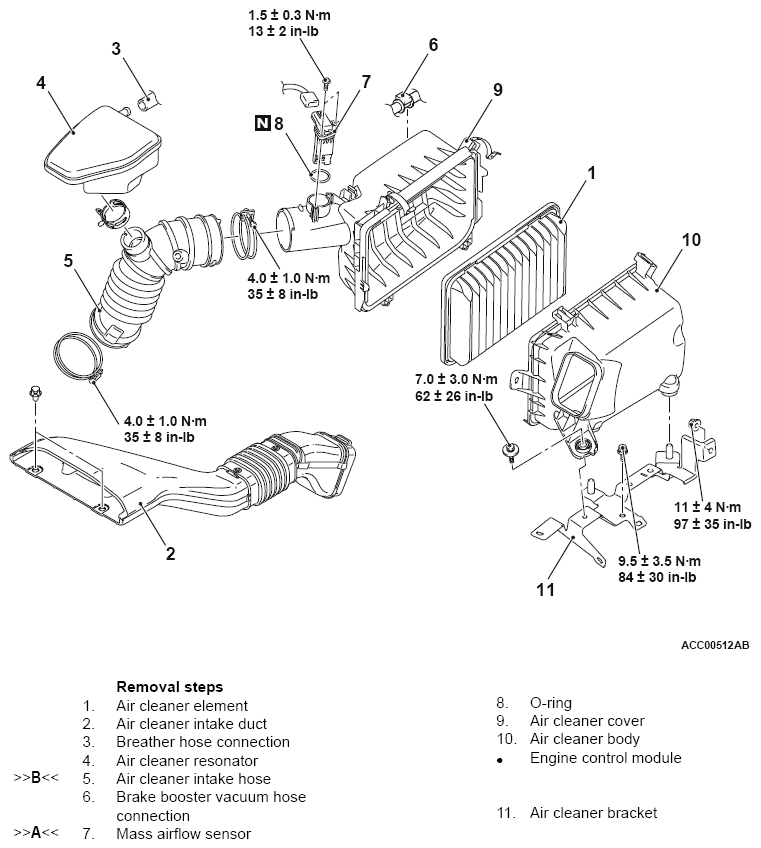

Fig 1: Removing/Installing Air Cleaner With Torque Specification - 2.4L Engine
G09664658Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
