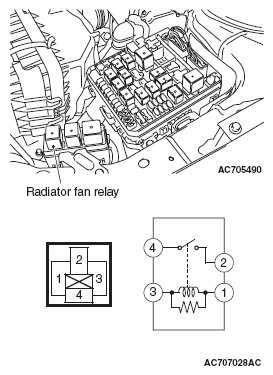

Radiator Fan Relay Check
WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
BATTERY VOLTAGE CONTINUITY CHART
| Battery voltage |
Terminal No. to be connected to tester |
Continuity test results |
| Not applied |
2 - 4 |
Open circuit |
| Connect terminal No. 3 and battery (+) terminal. Connect terminal No. 1 and battery (-) terminal. |
Continuity (Less than 2 ohms) |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
