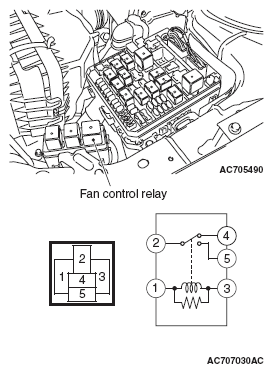

Fan Control Relay Check
WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
BATTERY VOLTAGE CONTINUITY CHART
| Battery voltage | Terminal No. to be connected to tester | Continuity test results |
|---|---|---|
| Not applied | 2 - 4 | Continuity (Less than 2 ohms) |
| Not applied | 2 - 5 | Open circuit |
| Connect terminal No. 1 and battery (+) terminal. Connect terminal No. 3 and battery (-) terminal. | Continuity (Less than 2 ohms) |
