Construction Diagram

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

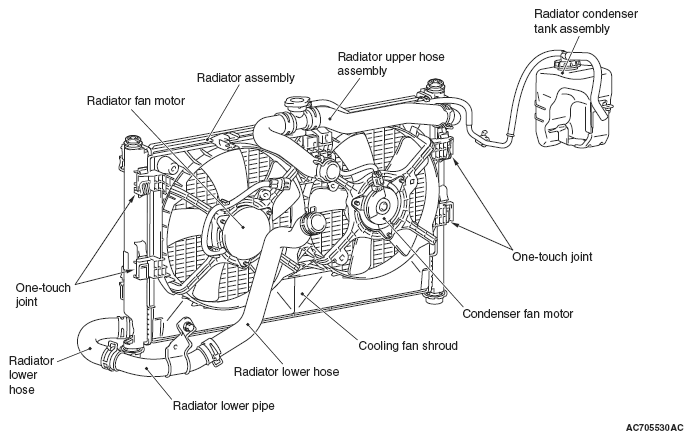

Fig 1: Engine Cooling System Construction Diagram
G05393603Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
