Antenna Communication Test
WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
Through the operations on the scan tool (M.U.T.-III) screen, the antenna communication tests can be performed.
Required Special Tools:
- MB992744: Vehicle communication interface-Lite (V.C.I.-Lite)
- MB992745: V.C.I.-Lite main harness A
- MB992747: V.C.I.-Lite USB cable short
- MB992748: V.C.I.-Lite USB cable long
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicles Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
CAUTION:
To prevent damage to scan tool (M.U.T.-III), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (M.U.T.-III).

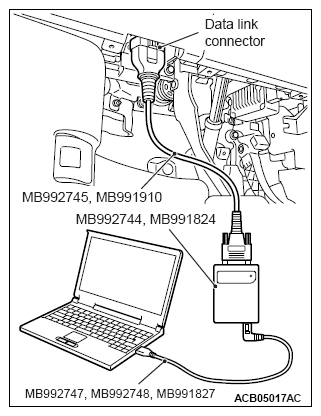

Connect the scan tool (M.U.T.-III) to the 16-pin data link connector as follows.
NOTE:
For details on how to use the scan tool, refer to the "M.U.T.-III User's Manual."
- Start the scan tool (M.U.T.-III) system on the personal computer and turn the power supply mode of the engine switch to ON.
- Select "F.A.S.T./IMMO/Keyless/TPMS" button from the "System Select" screen. Then, select the applicable option code item and push the OK button.
- Select "Special Function" on the next screen.
- Select the button of the operation to be performed from the "Special Function" screen.
- Select the antenna to be tested on "Comm. Test" screen, and press the OK button with the keyless operation key placed within the communication operational area.
- Push the OK button after "Communication is normal." is displayed.
