Driver's, Passenger's (Front) And Knee Air Bag Module

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the pad cover for dent, crack, or deformation.
  2. Check the connector for damage, the terminal for deformation, and the harness for binding.
  3. Check the inflator case for dent, crack, or deformation.
  4. Check that the air bag module is installed correctly.

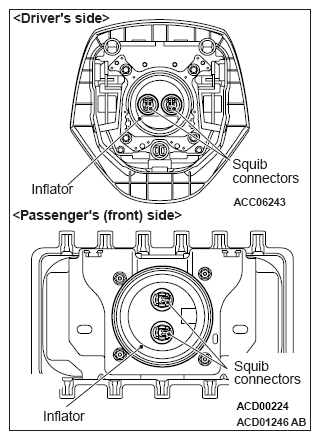

    Fig 1: Identifying Squib Connector And Inflator
    G09666737Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
