Clock Spring

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

If any malfunction is found in the following inspections, replace the clock spring with a new one.

Check the connectors and protective tubes for damage and the terminal for deformation.
Check the case for damage.
Check that the continuity exists between the following connector terminals.
- Clock spring connector terminal 1 and horn connector terminal 1
- Clock spring connector terminal 5 and horn connector terminal 5

  Fig 1: Identifying Horn Connector And Clock Spring Connector Terminals
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

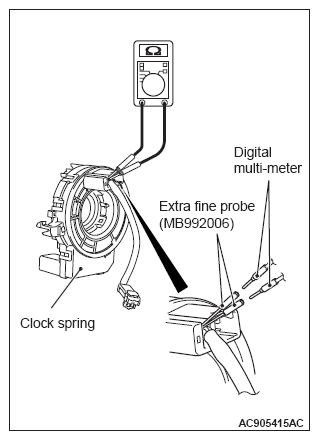

As shown in the Figure, connect the circuit tester to special tool extra fine probe (MB992006) and check to see that there is a charge between the terminals.

Fig 2: Checking Clock Spring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
