Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Never attempt to disassemble or repair the curtain air bag modules. If faulty, replace it.
  • Do not drop the curtain air bag modules or allow contact with water, grease or oil. Replace it if a dent, crack, deformation or rust is detected.
  • Do not expose the curtain air bag modules to temperatures over 93°C (199°F).
  • After the air bag deployment, replace the air bag module with a new one.
  • Wear gloves and safety glasses when handling air bags that have already deployed.
  • Certain components of this vehicle, such as air bag modules and seat belt pre-tensioners, may contain perchlorate materials. Before deployment and/or disposal of these components, review and comply with all applicable Federal, state and local regulations.
  • An undeployed curtain air bag module should only be disposed of in accordance with the procedures (Refer to PASSENGER'S AIR BAG ON/OFF INDICATOR LIGHT  ).

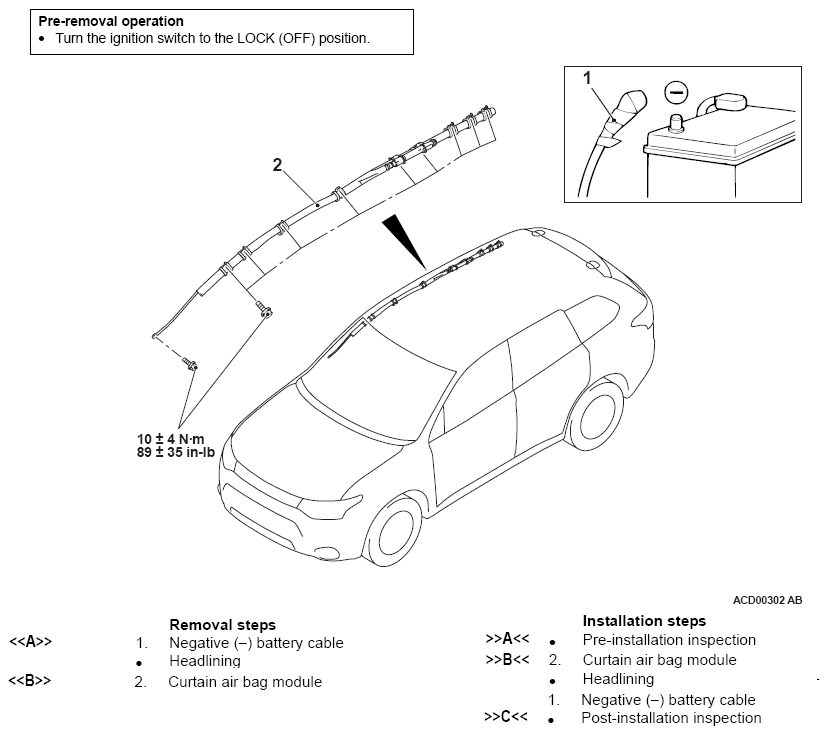

Fig 1: Removing/Installing Curtain Air Bag Module With Torque Specifications
G09666788Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
