Timing Chain Learned Value Reset < 2.4L Engine >

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tools:

MB992744: Vehicle Communication Interface-Lite (V.C.I.-Lite)
MB992745: V.C.I.-Lite Main Harness A
MB992747: V.C.I.-Lite USB Cable Short
MB992748: V.C.I.-Lite USB Cable Long
MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicles Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)

CAUTION: To prevent damage to the scan tool (M.U.T.-III), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting the scan tool (M.U.T.-III).

After the ignition switch is in "LOCK" (OFF) position, connect scan tool (M.U.T.-III) to the data link connector.
Turn the ignition switch to the "ON" position.
Select "MFI" from System select Screen of the scan tool (M.U.T.-III).
Select "Special Function" from MFI Screen.
Select "Timing chain maintenance" from Special Function Screen.
Select "Learned value reset" from Timing chain maintenance Screen.
Press "ON" to reset the learning value.

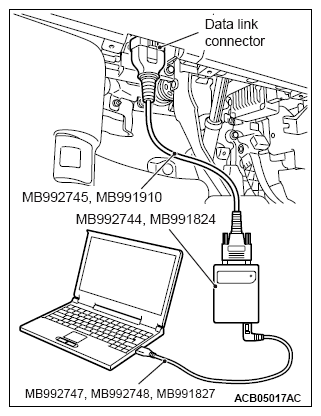

Fig 1: Identifying Data Link Connector And Special Tools
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
