< 3.0L Engine (Intake Side Only) >

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Perform the valve clearance check and adjustment at the engine cold state.
  1. Remove all of the ignition coils.
  2. Remove the rocker cover.
  3. Turn the crankshaft clockwise until the notch on the pulley is lined up with the "T" mark on the timing indicator.

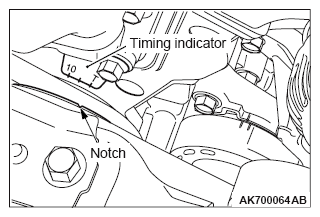

    Fig 1: Identifying Timing Indicator And Notch
    G09663211Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Valve clearance inspection and adjustment can be performed on rocker arms indicated by white arrow mark when the No. 1 cylinder piston is at the top dead center on the compression stroke, and on rocker arms indicated by black arrow mark when the No. 4 cylinder piston is at the top dead center on the compression stroke.
    NOTE: If the rocker arm of No. 6 cylinder at the intake side is moved up and down and the rocker arm is moved, No. 1 cylinder is at top dead center on compression stroke. If the rocker arm of No. 6 cylinder at the intake side is moved up and down and the rocker arm is not moved, No. 4 cylinder is at top dead center on compression stroke.

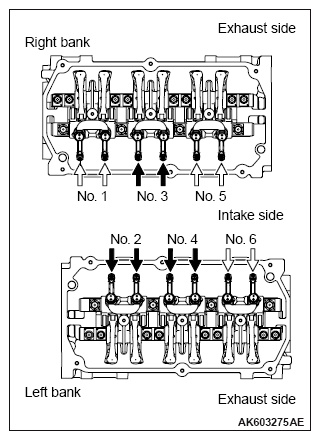

    Fig 2: Locating Rocker Arms Installing Position
    G09663212Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. Measure the valve clearance for intake side.

    If the valve clearance is not as specified, loosen the rocker arm lock nut and adjust the clearance using a thickness gauge while turning the adjusting screw.

    Standard value (cold engine): 0.10 mm (0.004 inch)

    NOTE: Valve clearance check and adjustment is unnecessary for exhaust side due to auto lash adjuster installed.
  6. While holding the adjusting screw with a screwdriver to prevent it from turning, tighten the lock nut to the specified torque.

    Tightening torque: 9 ± 1 N.m (80 ± 9 in-lb)

  7. Turn the crankshaft 360 degrees to line up the notch on the crankshaft pulley with the "T" mark on the timing indicator.
  8. Repeat steps  5 and  6 on other valves for clearance adjustment.
  9. Install the rocker cover.
  10. Install the ignition coils.
    Fig 3: Installing Rocker Cover
    G09663213Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
