Rigid Racks And A Single-Post Lift Or Double-Post Lift

WARNING: This page is about a different car, the 2014 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Be sure to support the specified locations only. Otherwise, deformation of vehicle may occur.
  • Be careful to avoid damage to the side sill garnish.

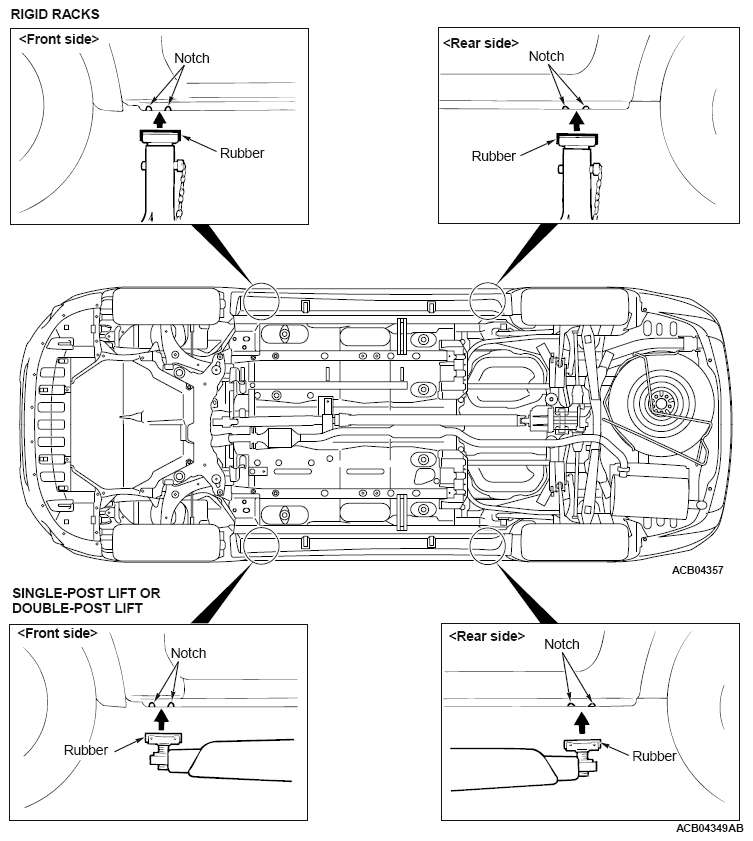

Fig 1: Lifting Vehicle Using Hoist/Rack
G09663194Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
