Removal And Installation

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

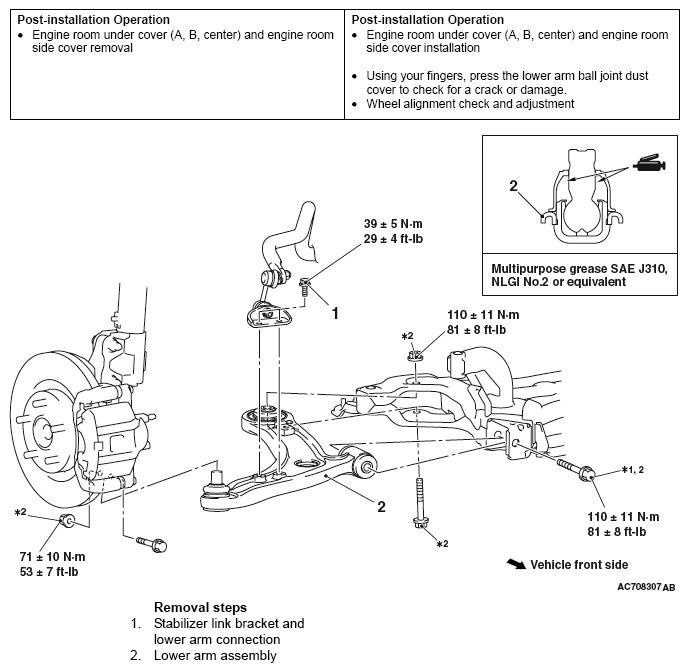

Fig 1: Lower Arm Remove / Install Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

^*1 : Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle standing on the ground and the curb weight condition.
^*2 : Indicates the bolts and nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from bearing and thread surfaces, and tighten them to the specified torque.
Do not damage the lower arm ball joint dust cover during maintenance. If it is damaged, replace the lower arm ball joint dust cover. (Refer to LOWER ARM BALL JOINT DUST COVER REPLACEMENT .)
