Parking Brake Switch Check

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the floor console assembly (Refer to FLOOR CONSOLE ).

Check the continuity between the parking brake switch terminal and the switch mounting bolt.

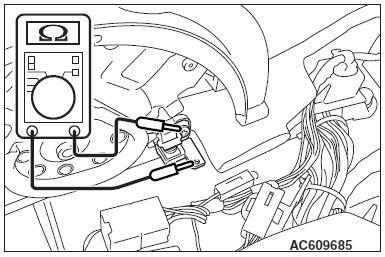

Fig 1: Checking Continuity Between Parking Brake Switch Terminal And Switch Mounting Bolt

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CONTINUITY SPECIFICATION

Check conditions	Normal conditions
When the parking brake lever is pulled up:	Continuity exists
When the parking brake lever is released:	No continuity

After the check, install the floor console assembly. (Refer to FLOOR CONSOLE .)
