< Trunk Room >

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

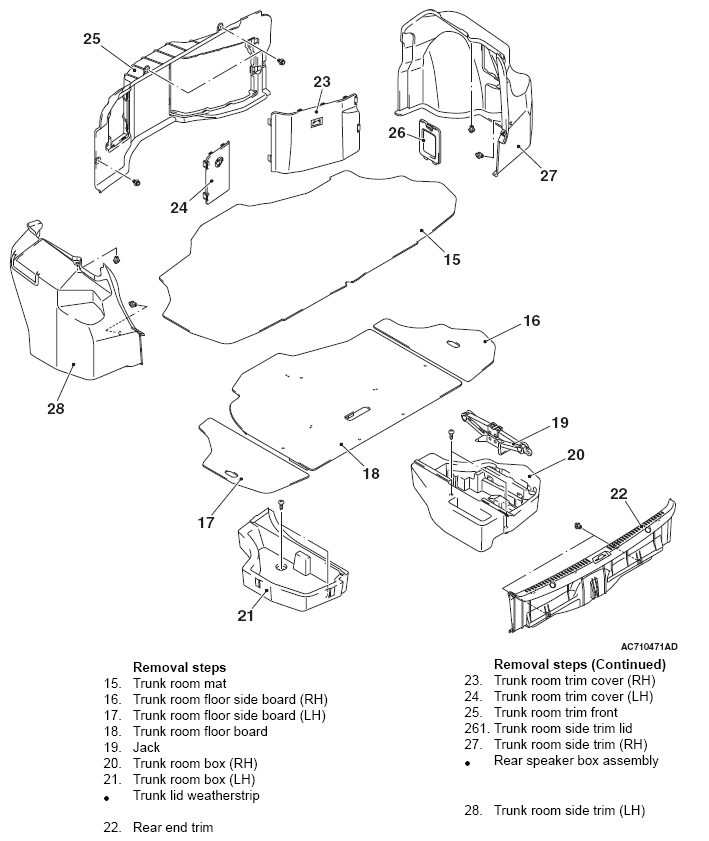

Fig 1: Identifying Trunk Room Remove/Install Components
G05396056Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
