Removal And Installation: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: *Remove and assemble the marked parts in each cylinder unit.

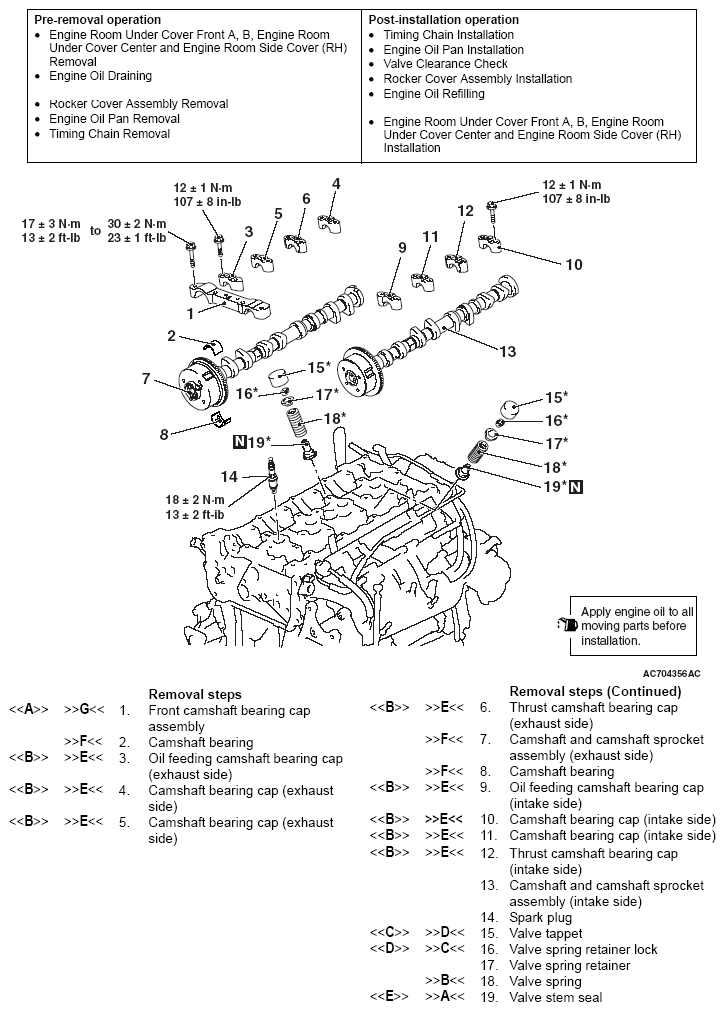

Fig 1: Camshaft Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MD998772: Valve Spring Compressor
MB992089: Retainer Holder C
MB992090: Retainer Holder Attachment
MB992085: Valve Stem Seal Pliers
MD998737: Valve Stem Seal Installer
