B: Timing Chain TENSIONER Installation

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

Check that the sprocket timing chain mating marks align with the link plates (blue) of the timing chain, and install the timing chain tensioner to the cylinder block.

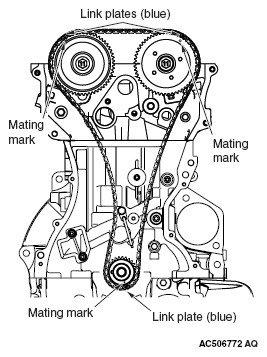

Fig 1: Aligning With Link Plates (Blue) Of Timing Chain
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Remove the hard wire or L-shaped hexagon wrench fixing the plunger of the timing chain tensioner to apply tension to the timing chain.

Fig 2: Identifying Timing Chain Tensioner
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
