A: Timing Chain Installation

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

Set the timing marks of the camshaft sprockets and the crankshaft sprocket as shown in the figure.

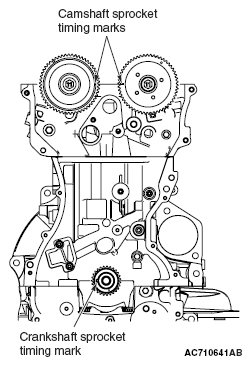

Fig 1: Identifying Crankshaft Sprocket Timing Mark
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Align each sprocket timing chain mating mark with the link plate (blue) of timing chain to avoid slack of the timing chain tension side, and install the timing chain to the sprockets.

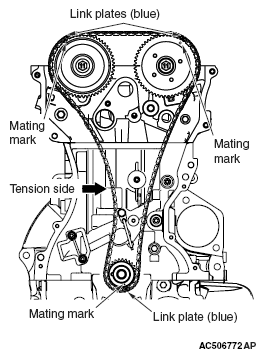

Fig 2: Identifying Mating Mark With Link Plate
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
