Interlock Switch Operating Check
WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not perform work wearing gloves which have grease on them.

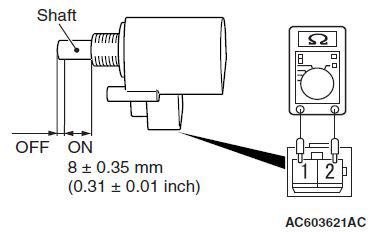

- Connect a circuit tester (Ω range) to the clutch interlock switch connector.
- If continuity exists (2Ω or less) when the shaft is pressed to the value shown in the figure or more, and continuity does not exist when the shaft is released, the clutch interlock switch is in good condition.
