DIAGNOSTIC ITEM 4: Diagnose shorts in the ground to CAN-C bus line: Notes
WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

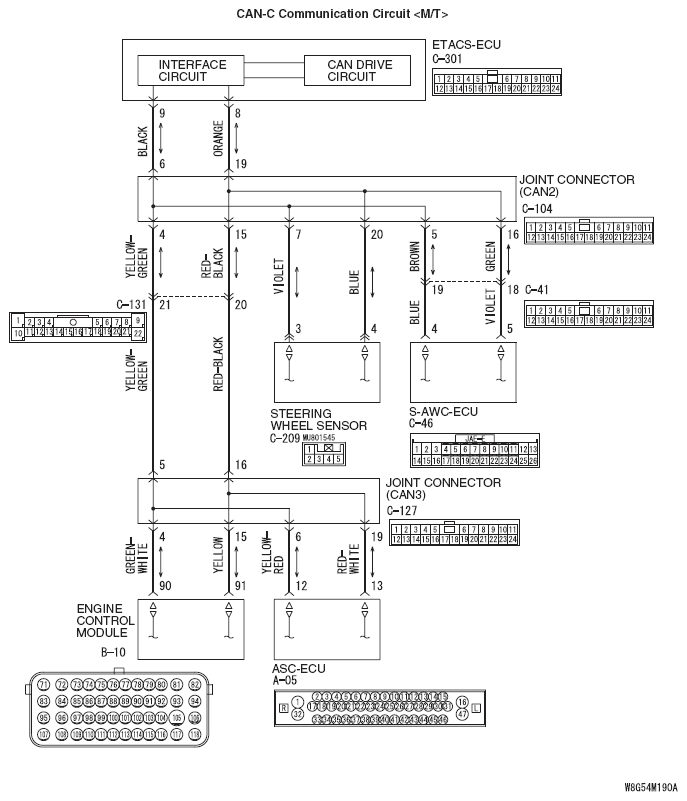

Fig 1: CAN-C Communication Circuit Diagram (M/T)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: CAN-C Communication Circuit Diagram (TC-SST)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

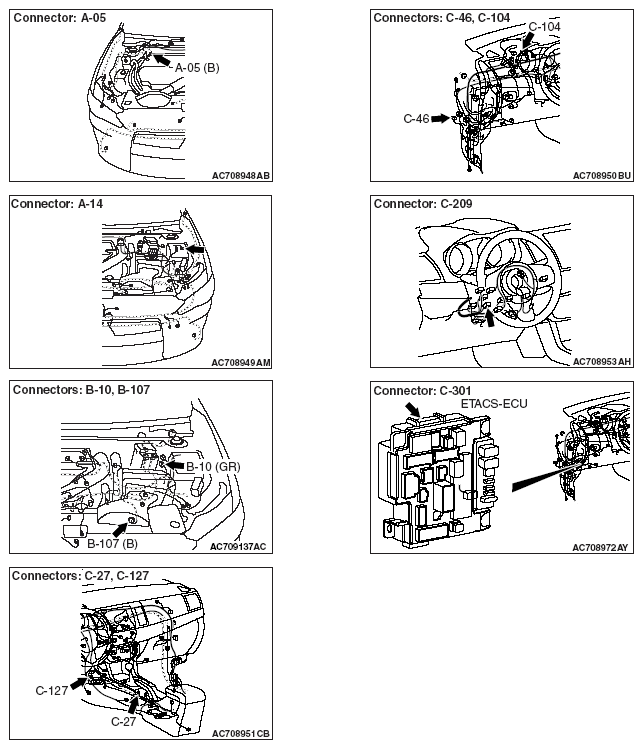

Fig 3: Identifying CAN-C Communication Connector Location
