Inspection Procedure 5: IG knob will not turn (keyless operation is not recognized): Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

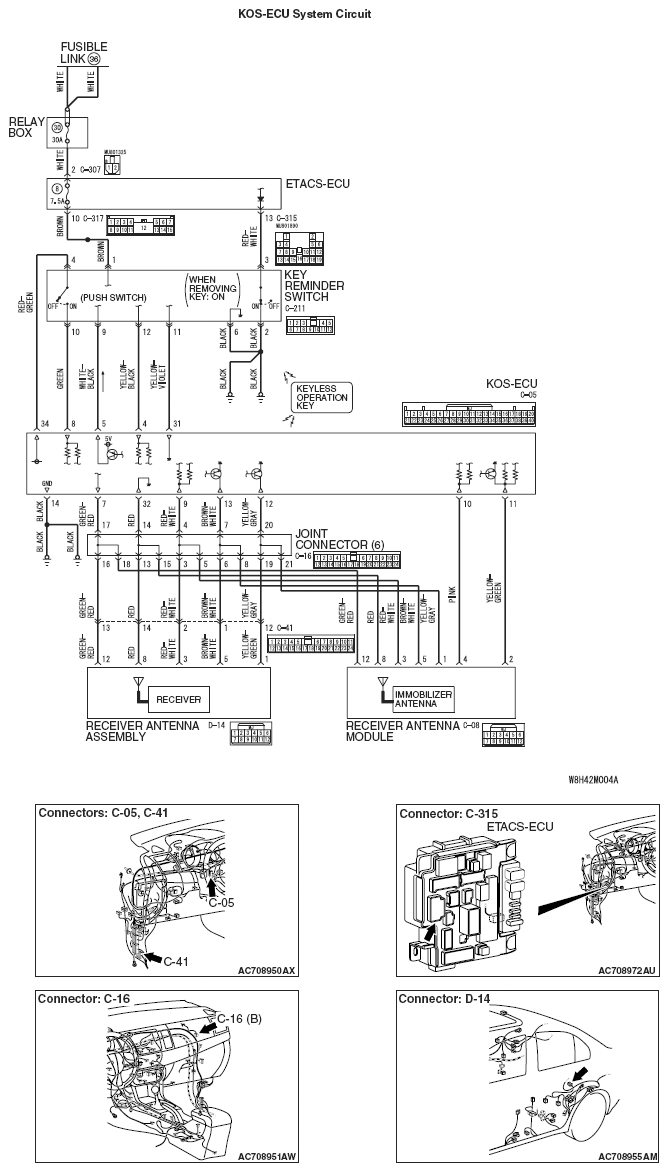

Fig 1: KOS-ECU System - Circuit Diagram
G05395236Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
