Inspection Procedure 17: The Trunk is not opened when the keyless operation key "TRUNK" button is operated: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the com munication circuit are normal.

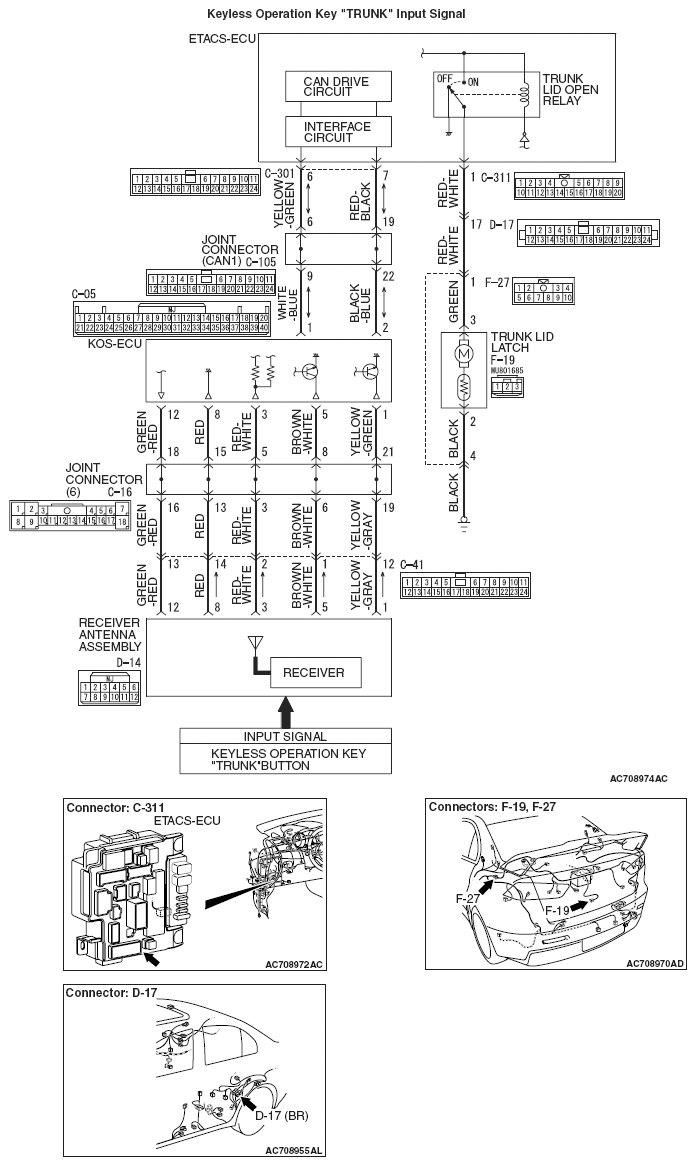

Fig 1: Keyless Operation Key "TRUNK" Input Signal - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
