DTC B240B: FL antenna(outdoor) open: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When replacing the ECU, always check that the communication circuit is normal.

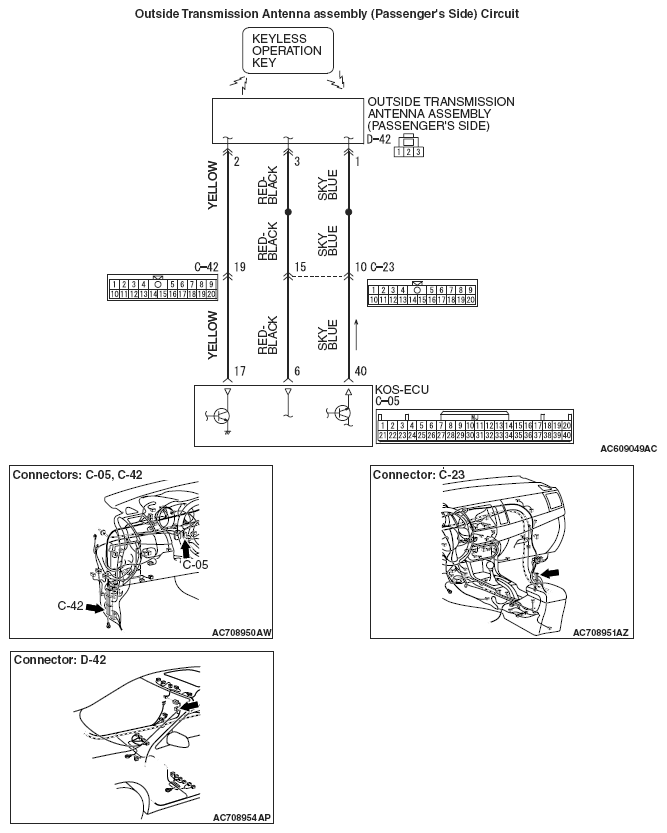

Fig 1: Outside Transmission Antenna Assembly (Passenger's Side) - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
