Removal And Installation: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: To remove the front seat assembly of vehicle with side air bag, refer to SERVICE PRECAUTIONS and Curtain Air Bag Module(s).

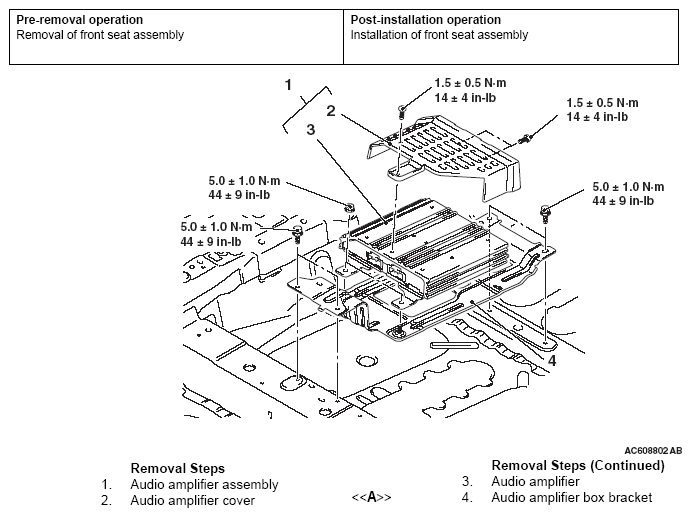

Fig 1: Audio Amplifier Replacement Components With Torque Specifications
G05397162Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
