MULTIVISION Display

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

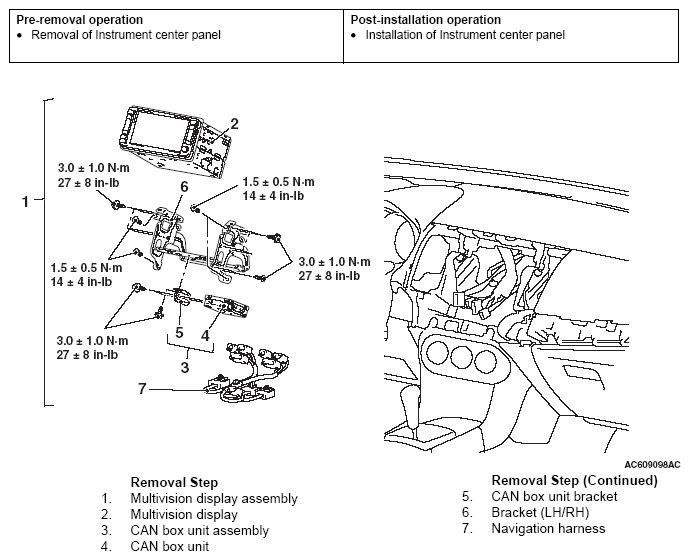

Fig 1: Multivision Display Replacement Components With Torque Specifications
G05397081Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
