Windshield Washer Fluid Ejection Check

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The splashing point cannot be adjusted by the nozzle. If the splashing point of the washer fluid is different from the figure below, replace the nozzle.

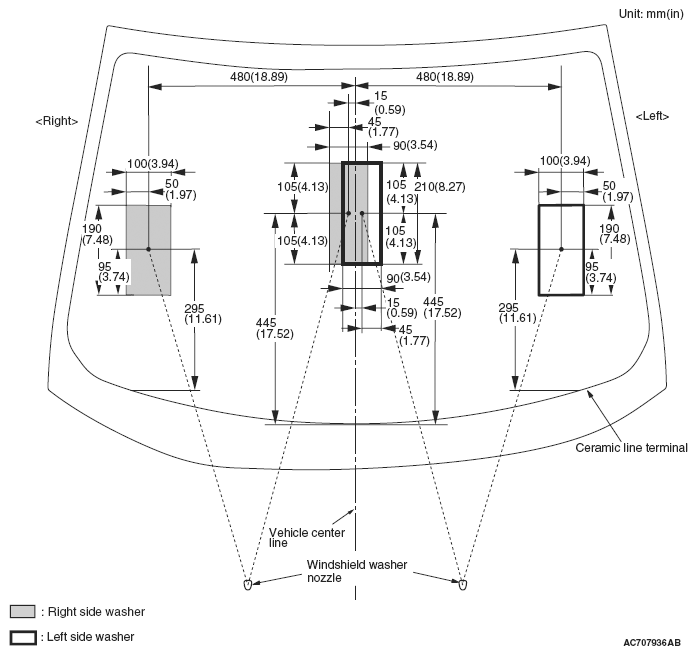

Fig 1: Windshield Washer Fluid Ejection Position
G05396030Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
