Fuel Tank < 2.4L Engine (AWD) >
>>
Disassembly And Assembly
>>
< Fuel Tank Assembly >
< Fuel Tank Assembly >

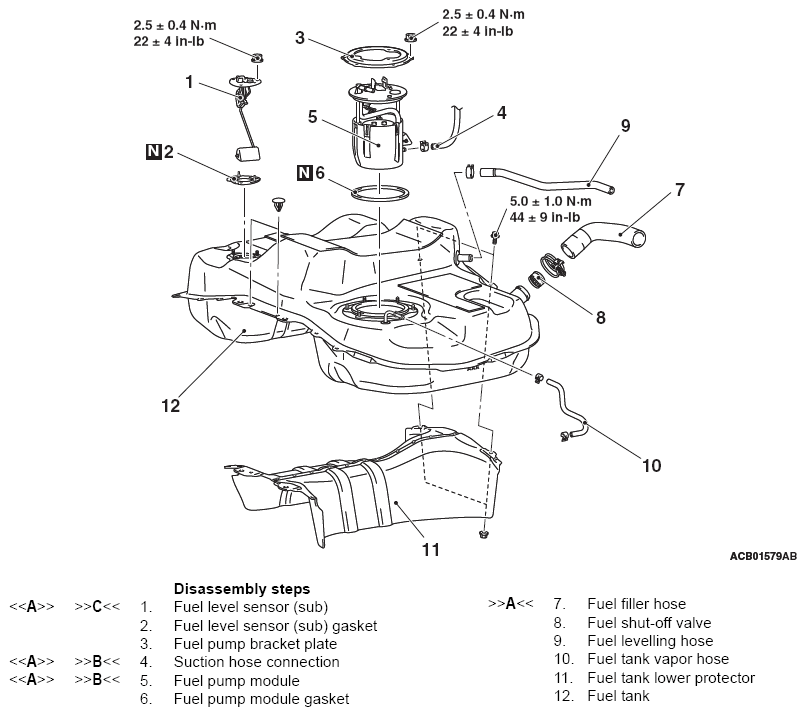

Fig 1: Disassembling/Assembling Fuel Tank Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
