< Fuel Pump Module >

NOTE: For installation and removal, refer to Fuel Pump Module Replacement in On-vehicle Service. (Refer to FUEL PUMP MODULE REPLACEMENT < 2.4L ENGINE (AWD) > .)

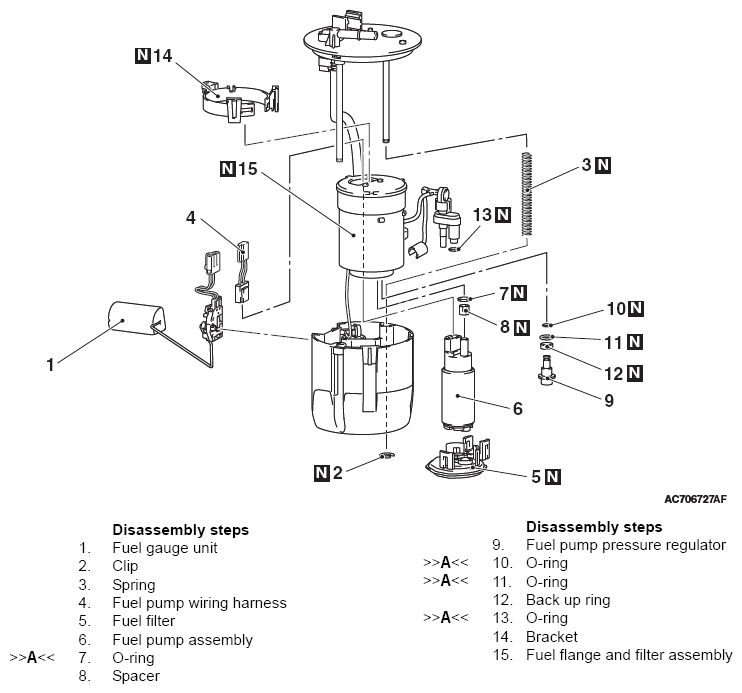

Fig 1: Disassembling/Assembling Fuel Pump Module Components With Torque Specifications
G09625199Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
