FUEL TANK (2.0L ENGINE Turbo)
>>
Disassembly And Assembly
>>
< Fuel Tank Assembly >
< Fuel Tank Assembly >

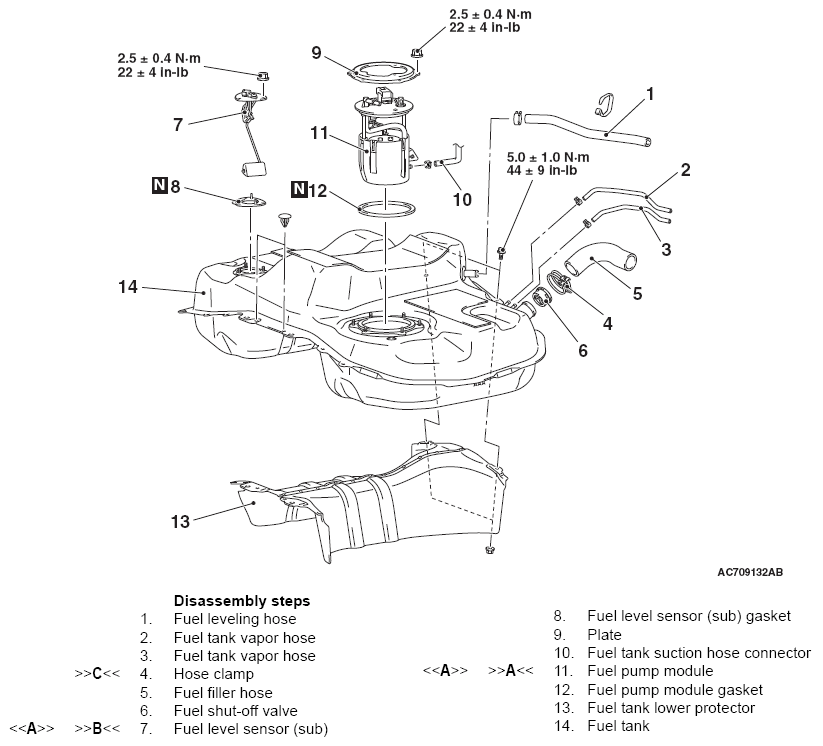

Fig 1: Disassembling/Assembling Fuel Tank Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
