< Fuel Tank Filler Tube Assembly >

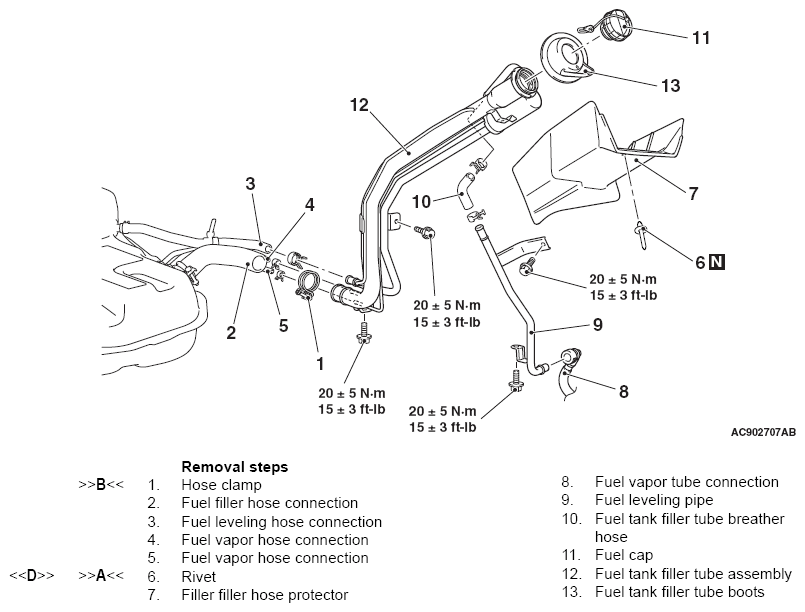

Fig 1: Removing/Installing Fuel Tank Components With Torque Specifications
G09625165Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
