Fuel Supply System - Lancer
>>
FUEL TANK (2.0L ENGINE Non-turbo, 2.4L ENGINE (FWD))
>>
Removal And Installation
>>
< Fuel Tank Assembly >
< Fuel Tank Assembly >

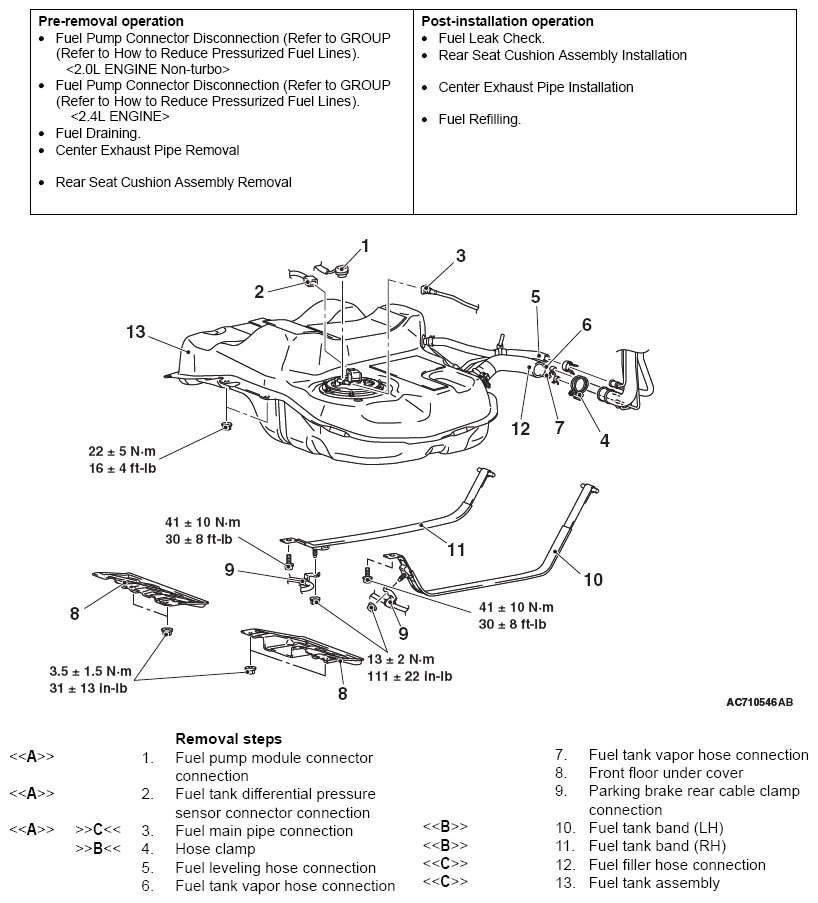

Fig 1: Removing/Installing Fuel Tank Components With Torque Specifications - Fuel Tank Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
