< Fuel Pump Module >

NOTE: For installation and removal, refer to Fuel Pump Module Replacement in On-vehicle Service. (Refer to FUEL PUMP OPERATION CHECK .)

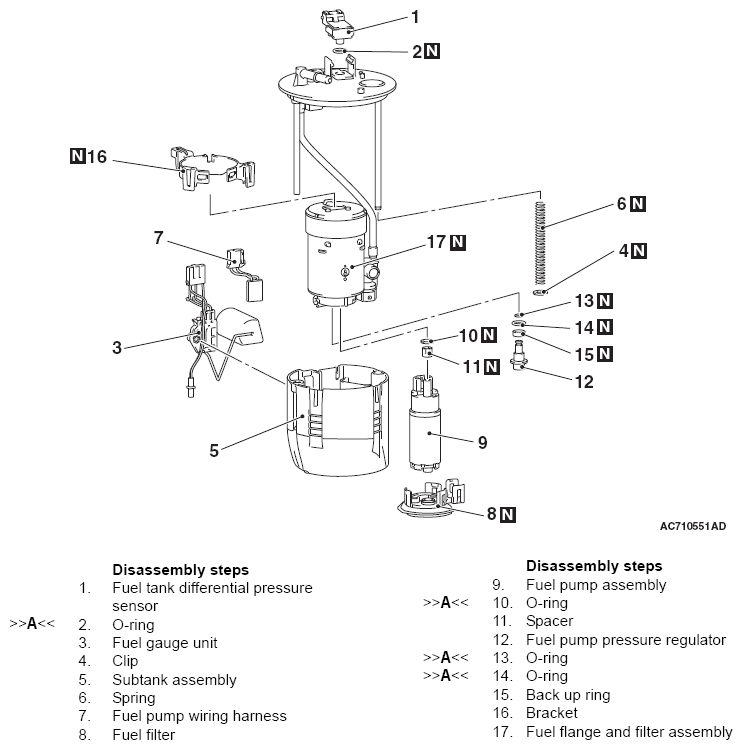

Fig 1: Disassembling/Assembling Fuel Pump Module Components With Torque Specifications
G09625178Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
