Home >> Mitsubishi >> 2014 >> Lancer ES Sportback >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Intake & Exhaust System - Lancer >> EXHAUST PIPE, MAIN MUFFLER AND CATALYTIC CONVERTER - 2.0L ENGINE Turbo >> Removal And Installation >> Notes

Removal And Installation: Notes

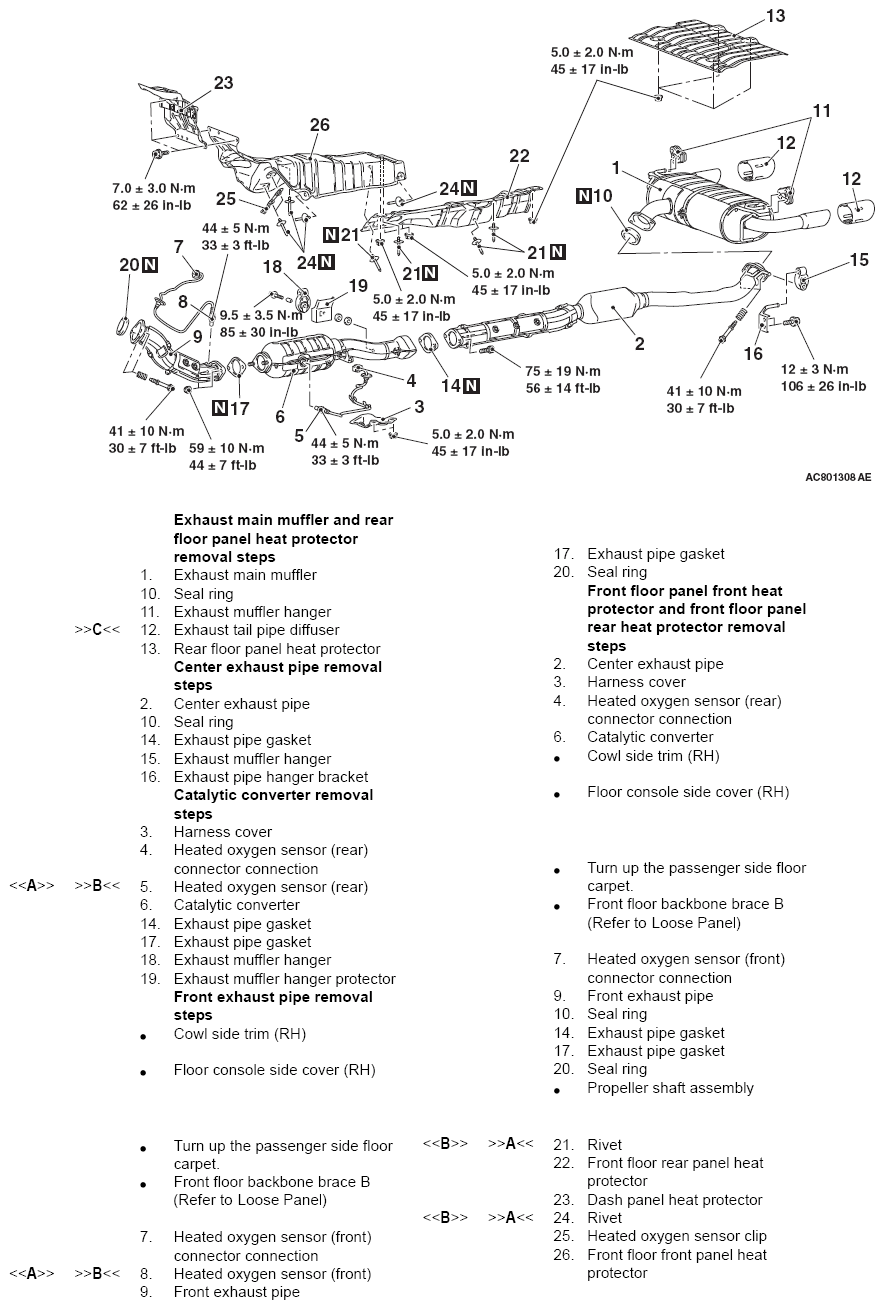

Fig 1: Removing/Installing Exhaust Pipe, Main Muffler And Catalytic Converter Components With Torque Specifications - 2.0L Engine Turbo
G09625339Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
