Removal And Installation: Notes

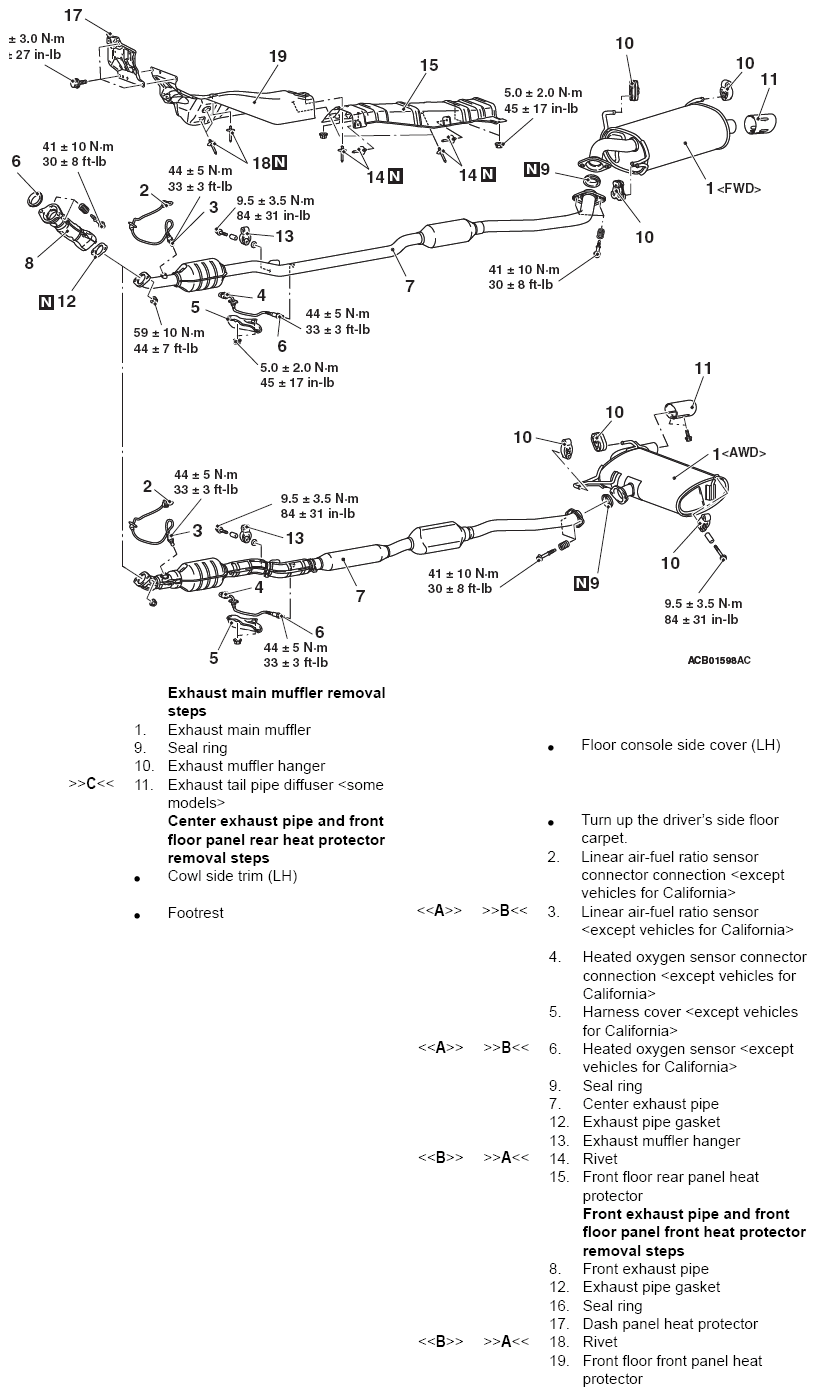

Fig 1: Removing/Installing Exhaust Pipe And Main Muffler Components With Torque Specifications - 2.0L Engine Non-Turbo, 2.4L Engine
G09625334Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
