Removal And Installation: Notes

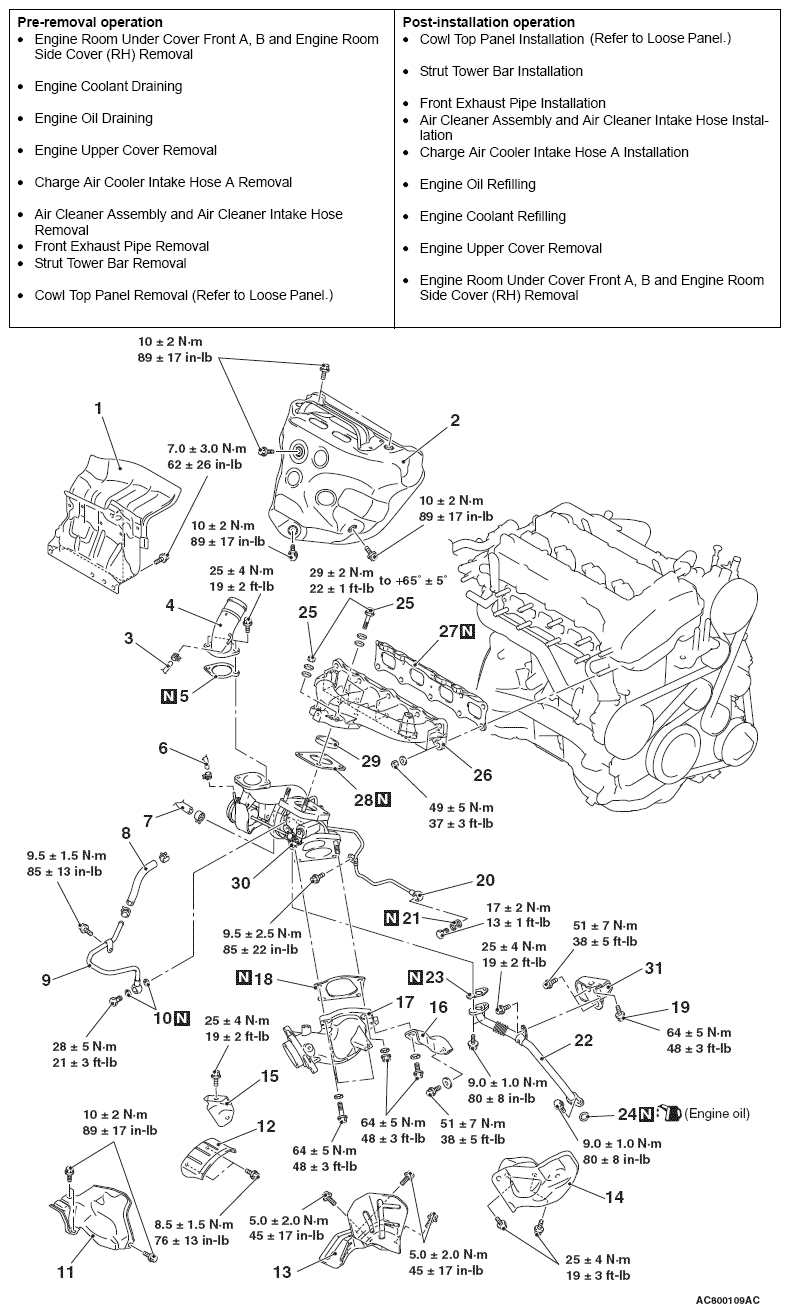

Fig 1: Removing/Installing Exhaust Manifold And Turbocharger Components With Torque Specifications - 2.0L Engine Turbo (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

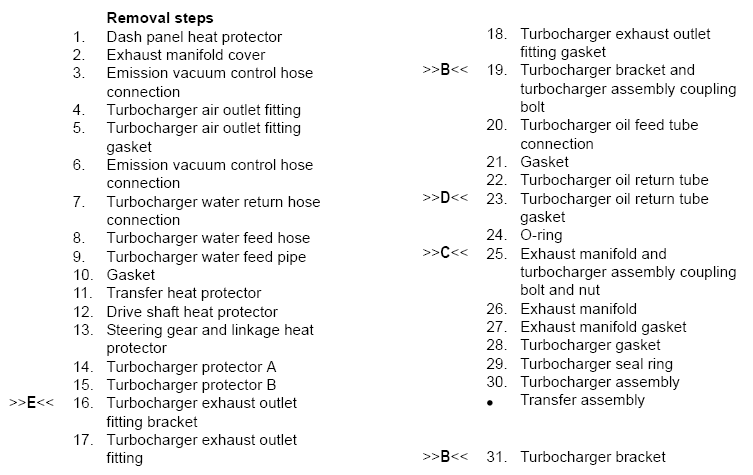

Fig 2: Removing/Installing Exhaust Manifold And Turbocharger Components - 2.0L Engine Turbo (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

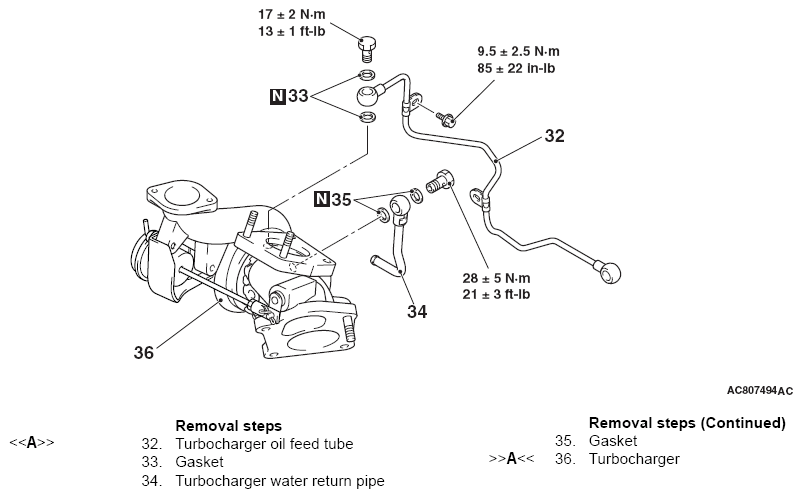

Fig 3: Removing/Installing Exhaust Manifold And Turbocharger Components With Torque Specifications - 2.0L Engine Turbo (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB991614: Angle Gauge
