(2.0L ENGINE Non-turbo)

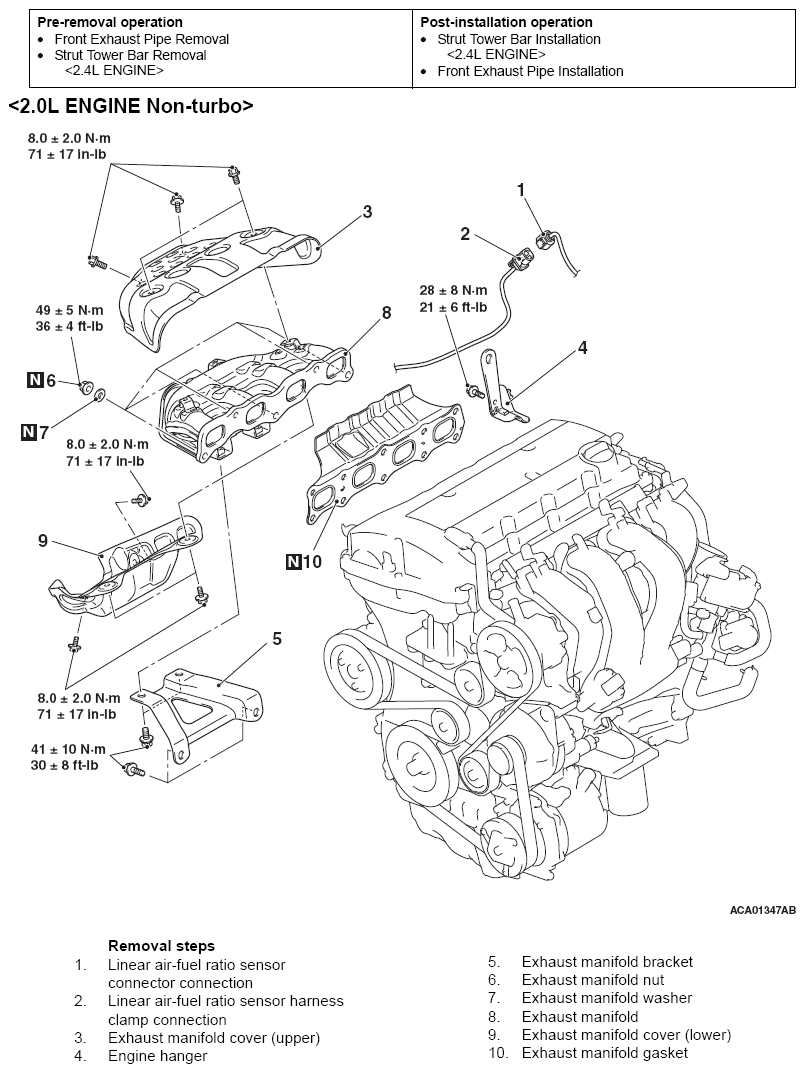

Fig 1: Removing/Installing Exhaust Manifold Components With Torque Specifications - 2.0L Engine Non-Turbo
G09625322Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
