Removal And Installation: Notes

CAUTION:
  • Decrease the air hose and air pipe by isopropyl alcohol, parts cleaner (MZ100387) or equivalent.
  • As for the parts cleaner, use the petroleum cleaner whose major component is aliphatic hydrocarbon.
  • Working area should be airy and kept from flame.

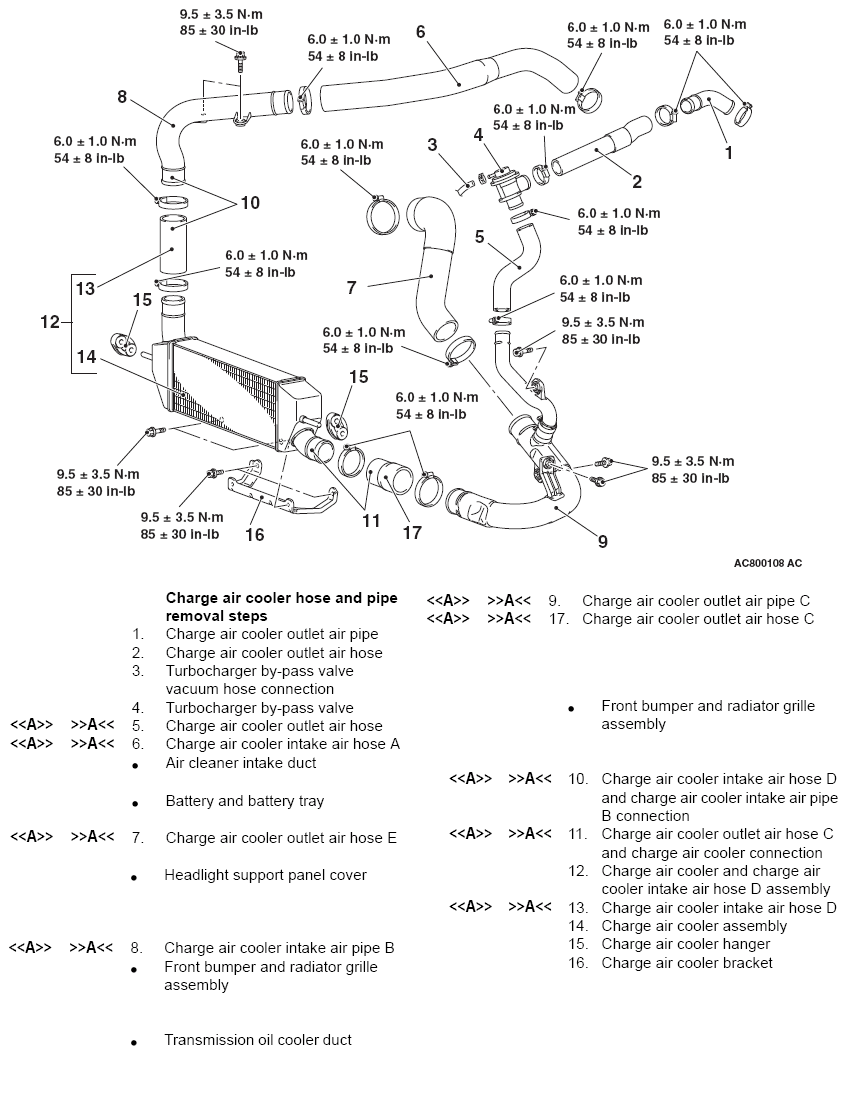

Fig 1: Removing/Installing Charge Air Cooler Components With Torque Specifications - 2.0L Engine Turbo
G09625314Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
