Removal And Installation - 2.0L Engine Non-Turbo, 2.4L Engine

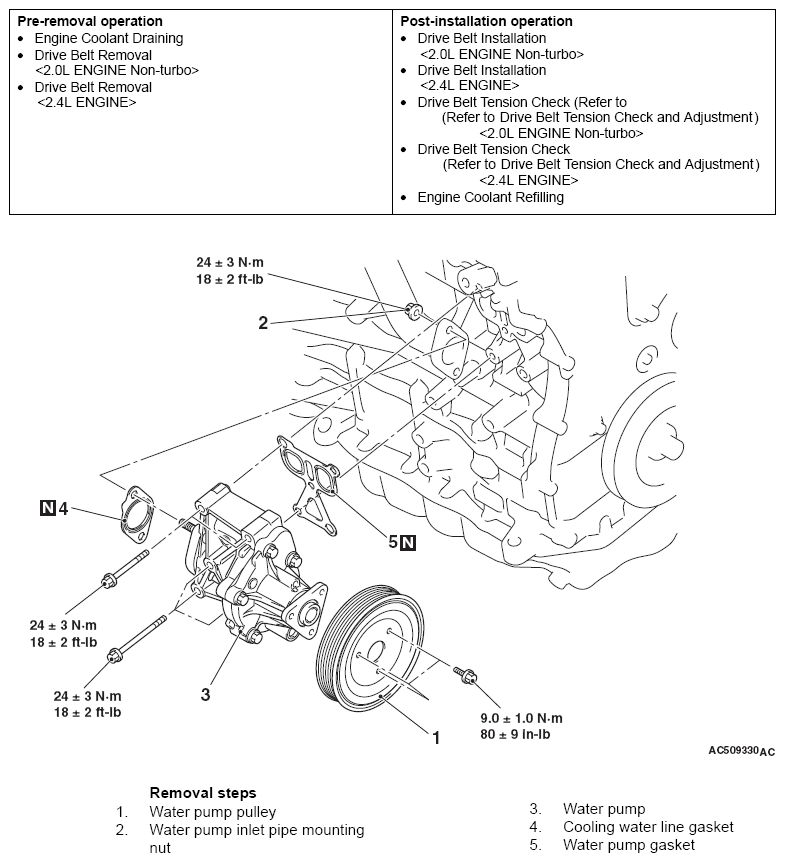

Fig 1: Removing/Installing Water Pump Components With Torque Specifications - 2.0L Engine Non-Turbo, 2.4L Engine
G09625271Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
