<< B >> Fuel High-Pressure Hose Disconnection

  1. Follow the steps below to unlock the fuel high-pressure hose connector.

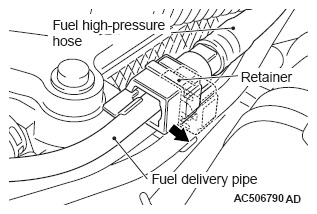

    Fig 1: Disconnecting Fuel High-Pressure Hose Connector
    G07029156Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    1. Insert a flat-tipped screwdriver [6 mm (0.24 inch) wide and 1 mm (0.04inch) thick] into the retainer of the fuel high-pressure hose connector.
      CAUTION: When pushing up the retainer of the fuel high-pressure hose connector, pay attention to avoid damage to the retainer.
      Fig 2: Inserting Flat-Tipped Screwdriver Wide Into Retainer Of Fuel High-Pressure Hose Connector
      G05375306Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    2. Turn the flat-tipped screwdriver inserted into the retainer by 90 degrees angle to push up the retainer and unlock the fuel high-pressure hose connector.
  2. Disconnect the fuel high-pressure hose.
    Fig 3: Disconnecting Fuel High-Pressure Hose
    G05375307Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
