Removal And Installation - 2.0L Engine Non-Turbo, 2.4L Engine: Notes

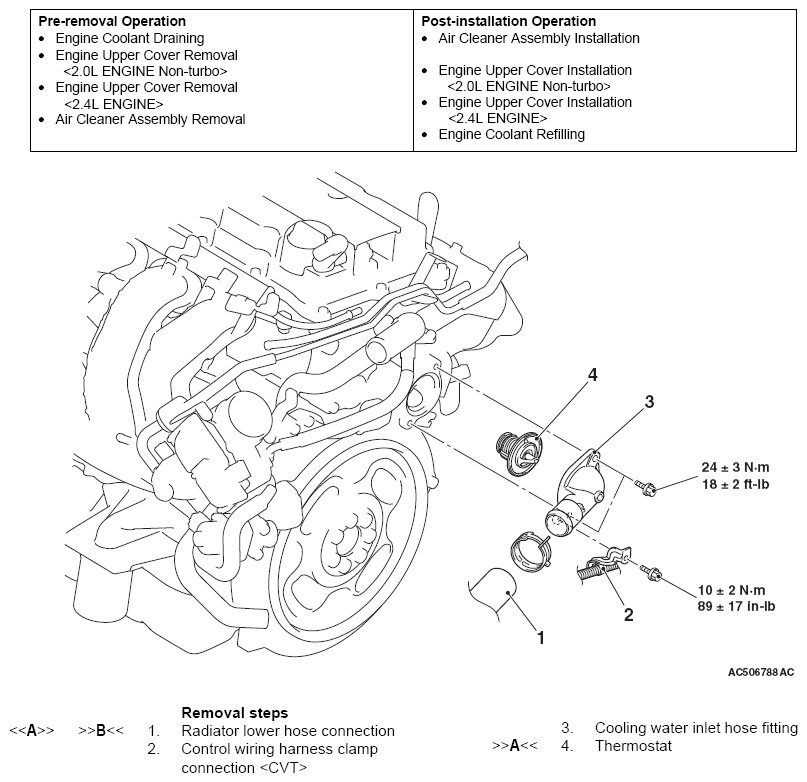

Fig 1: Removing/Installing Thermostat Components With Torque Specifications - 2.0L Engine Non-Turbo, 2.4L Engine
G09625261Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
