Removal And Installation - 2.0L Engine Turbo: Notes

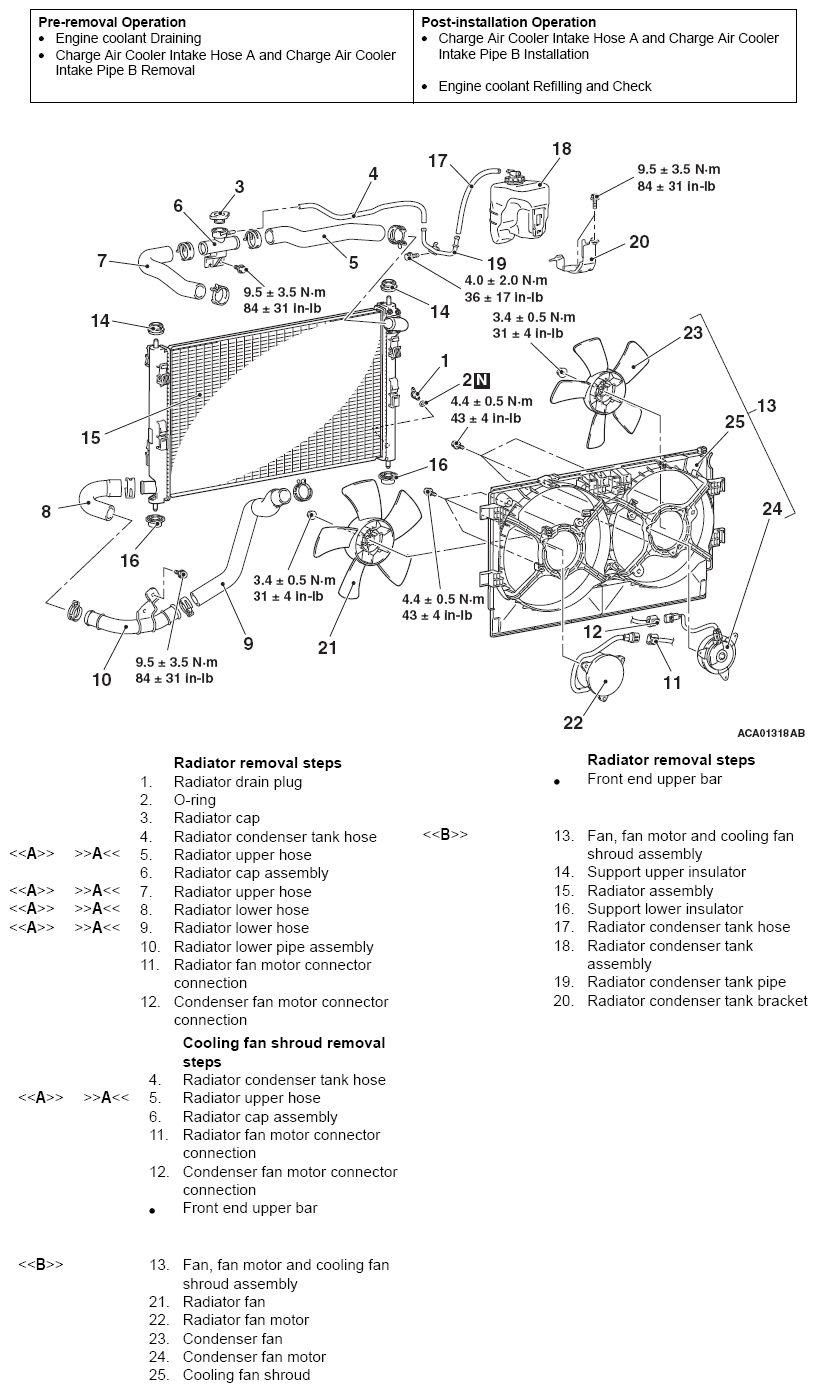

Fig 1: Removing/Installing Radiator Components With Torque Specifications - 2.0L Engine Turbo

G09625297

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
