Removal And Installation - 2.0L Engine Non-Turbo, 2.4L Engine: Notes

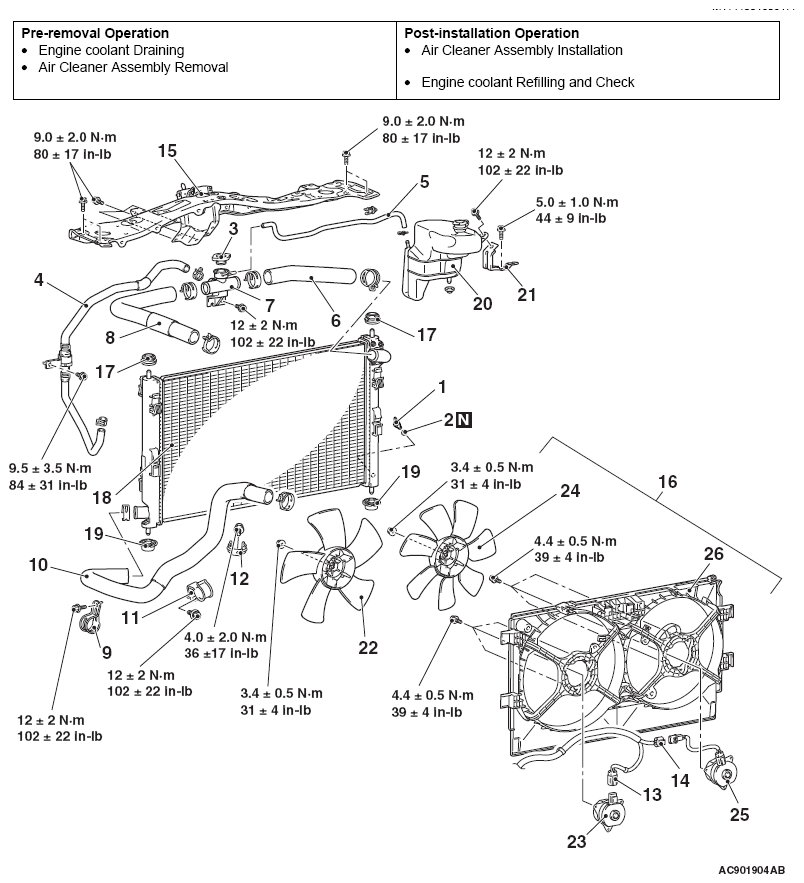

Fig 1: Removing/Installing Radiator Components With Torque Specifications - 2.0L Engine Non-Turbo, 2.4L Engine (1 Of 2)
G09625292Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

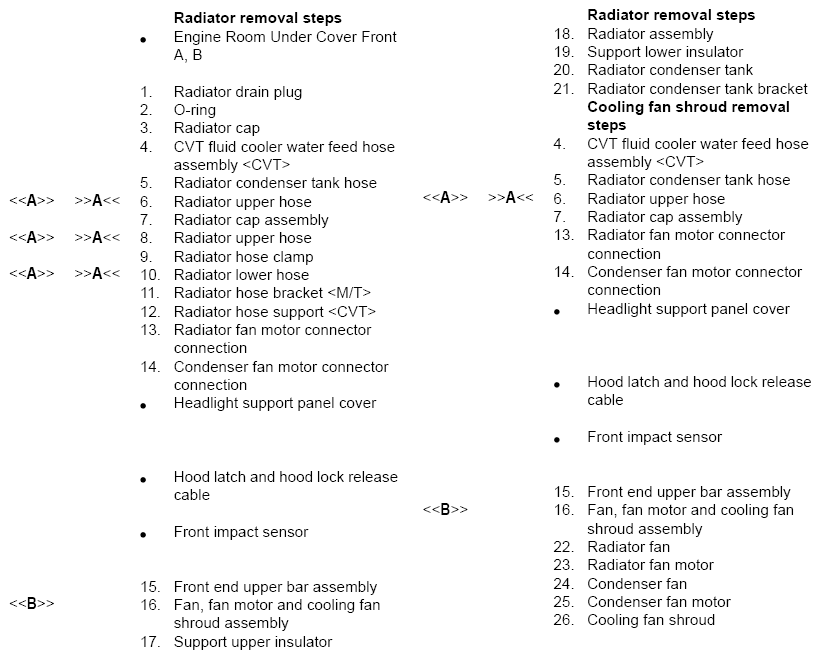

Fig 2: Removing/Installing Radiator Components - 2.0L Engine Non-Turbo, 2.4L Engine (2 Of 2)
G09625293Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
