Radiator Fan Relay Check

Battery voltage Terminal number to be connected to tester Continuity test results
Not applied 2 - 4 Open circuit
Connect terminal number 1 and battery (-) terminal.
Connect terminal number 3 and battery (+) terminal.		 Continuity (Less than 2 ohms)

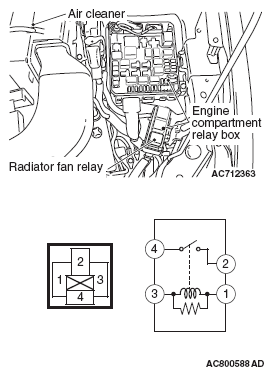

Fig 1: Identifying Radiator Fan Relay Terminals
G05903512Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
