Cooling Fan Motor Check - 2.0L Engine Non-Turbo, 2.4L Engine

  1. Disconnect the fan motor connector.

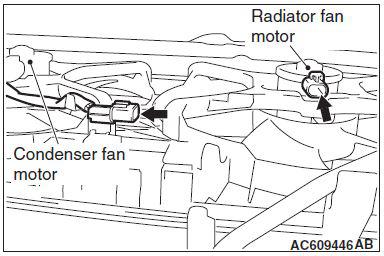

    Fig 1: Locating Fan Motor Connector
    G05375357Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Check that the fan motor runs when a positive battery terminal is connected to the fan motor-side connector terminal number 1, and terminal number 2 is grounded. Also check to see that there is no abnormal sound emitted from the fan motor at this time.
  3. If the fan motor is defective, replace it (Refer to << B >> FAN, FAN MOTOR AND COOLING FAN SHROUD ASSEMBLY REMOVAL  .)
  4. Connect the fan motor connector.
    Fig 2: Checking Radiator Fan Motor Connector Terminals
    G06671757Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    Fig 3: Checking Condenser Fan Motor Connector Terminals
    G06671758Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
