Battery - Lancer
>>
On-Vehicle Service
>>
Battery Removal And Installation
>>
< Except RALLIART >
< Except RALLIART >

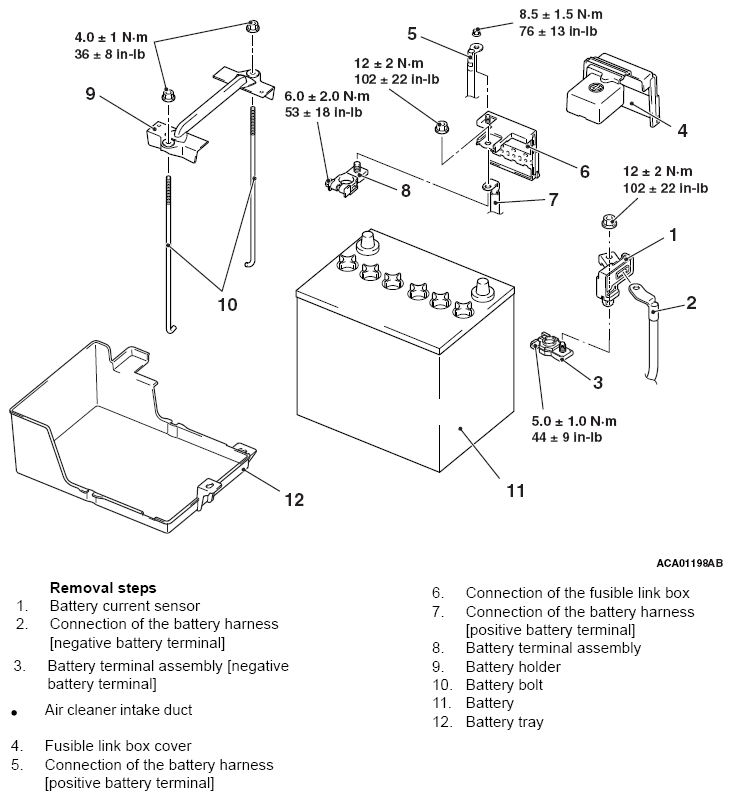

Fig 1: Exploded View Of Battery With Torque Specifications (Except Rallipart)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
