DTC B1201: Abnormal fuel information < AWD >: Notes

CAUTION: Whenever the ECU is replaced, ensure that the communication circuit is normal.

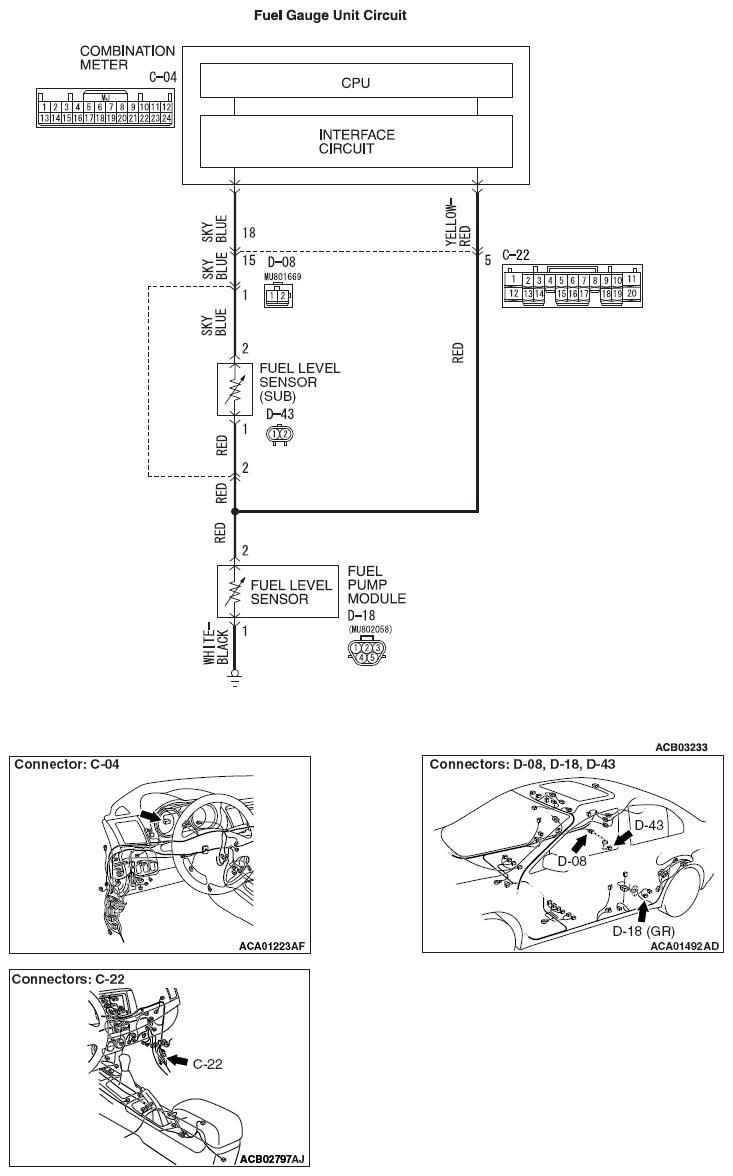

Fig 1: Fuel Gauge Unit Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
